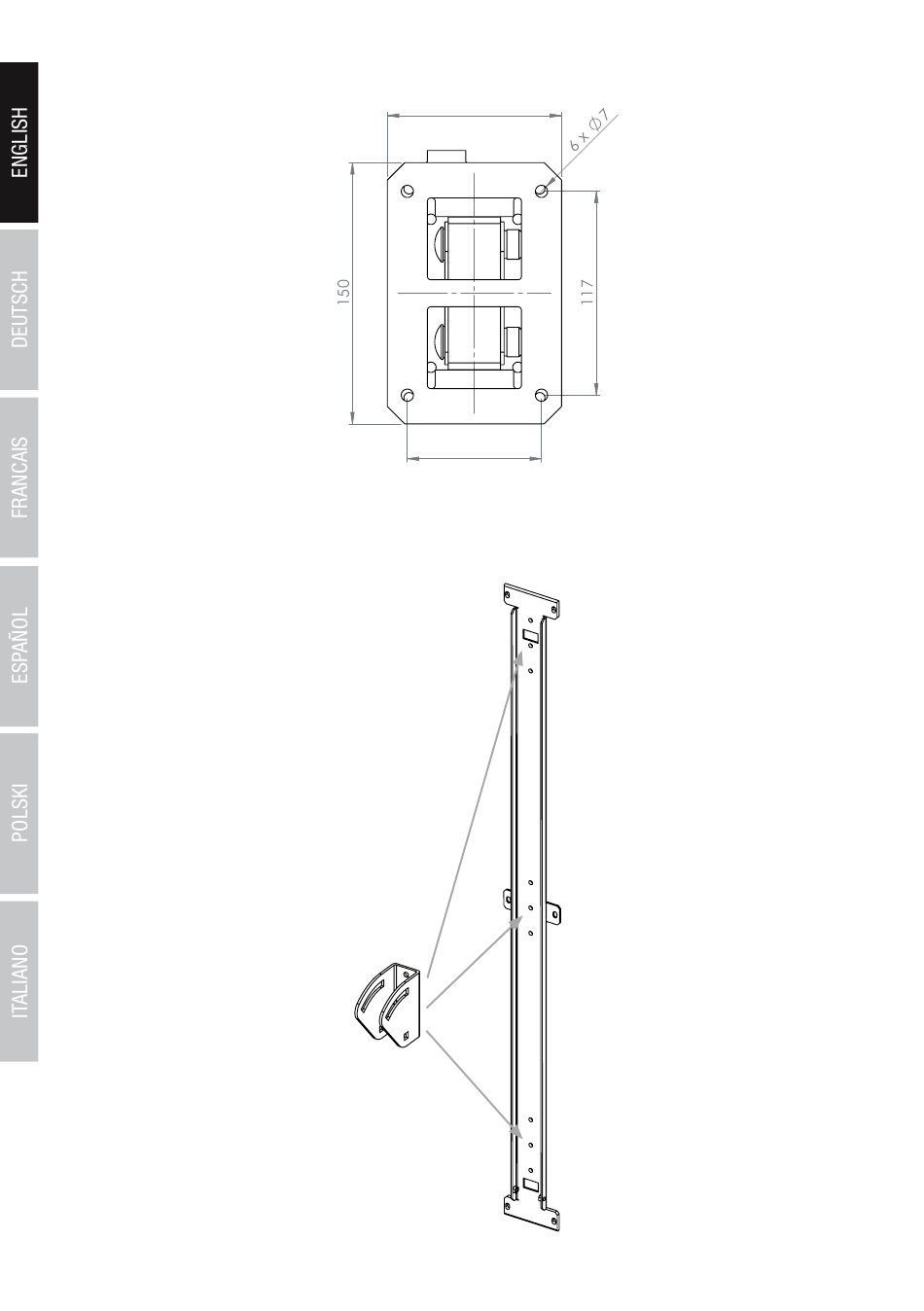

DIMENSIONS OF MOUNTING PLATE

100
77
POSITIONING TILT & SWIVEL BRACKET
The tilt and swivel U-bracket can be installed in 3 different positions on the speaker column mounting bracket. In its lowest position, the
system provides a maximum tilt angle of 22° for the MAUI 11 G2 and 12° for the MAUI 28 8G2 speaker columns.
