Controls & Connections

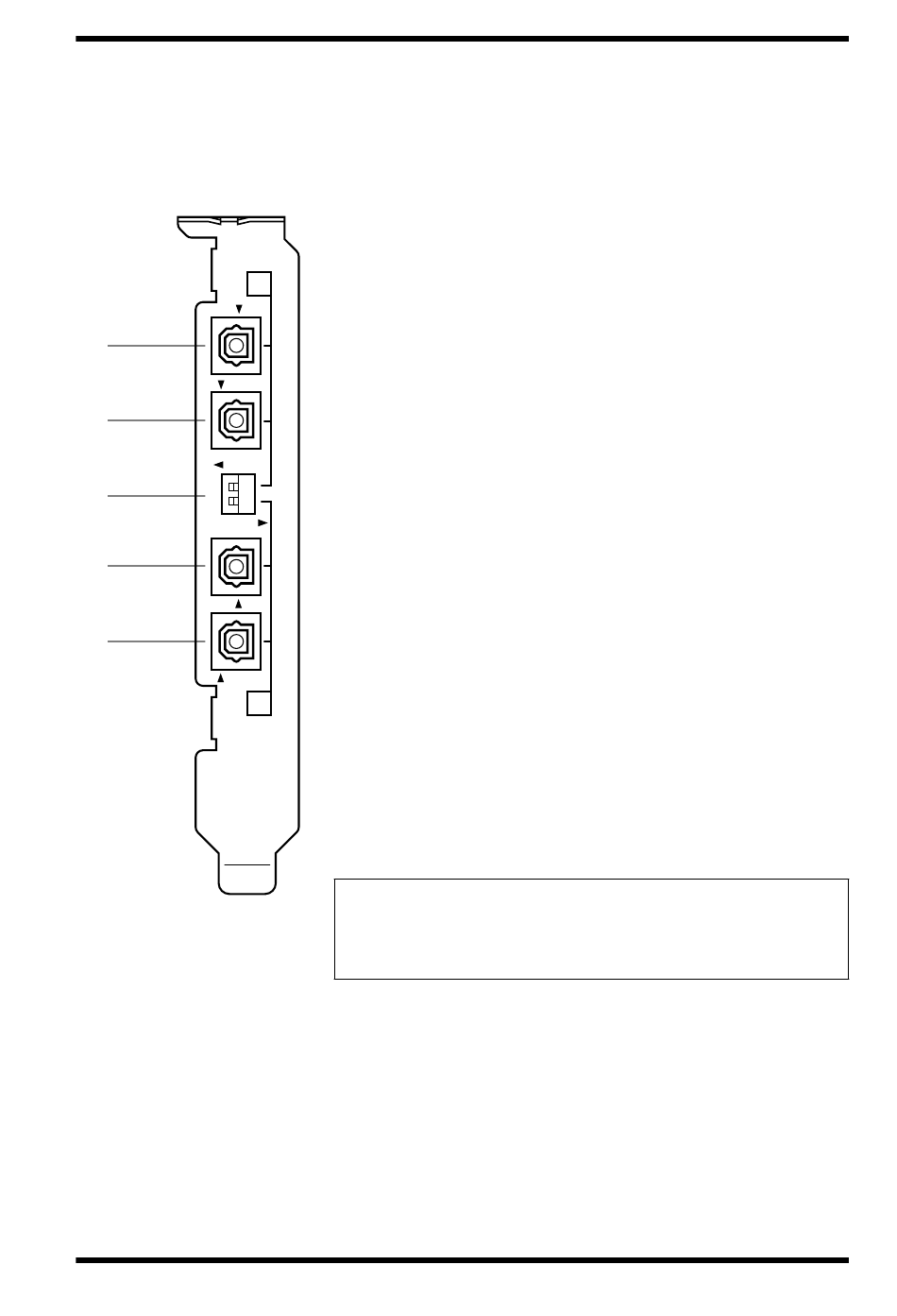

Rear

IN
1
OUT
2
ADAT
3
THRU
4
IN
5
OUT
(PCI mounting)
A
A IN
Signals arriving at this ADAT MultiChannel Optical Digital
input are fed through to the IO-A connector on this card.
A
B
A OUT
Signals from the IO-A outputs on the DS2416 are output via
this ADAT MultiChannel Optical Digital output.
C
A & B ADAT/THRU switches
These switches are used to select the input and output sig-
nals for the IO-A and IO-B connectors on this card. IO-A
and IO-B can be set individually. In the ADAT position, the
DS2416 receives and transmits signals via the A or B IN and
OUT connectors on this card. In the THRU position, the
DS2416 receives and transmits signals via the THRU A or B
connectors on this card.
D
B IN
Signals arriving at this ADAT MultiChannel Optical Digital
B
input are fed through to the IO-B connector on this card.
E
B OUT
Signals from the IO-B outputs on the DS2416 are output via
this ADAT MultiChannel Optical Digital output.
Note: Be aware that if the body of the plugs on your optical
cables is too large to pass easily through the expansion-slot
holes in the rear of your computer, the plugs may not plug
into the ADAT jacks properly and may come lose.
