RPE
Yaw (Rotation)
Adjust yaw by threading or unthreading the RPE projector
mount on the threaded extension column (not included).
7.
Loosen set screw. (See Figure 11)
WARNING:
IMPROPER ADJUSTMENT CAN LEAD TO
PROJECTOR FALLING RESULTING IN SERIOUS
PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Do
NOT unthread RPE to the end of pipe threads!
8.
Adjust projector by turning RPE projector mount on the
extension column to the desired yaw position.
9.
Tighten set screw.
7
8
9

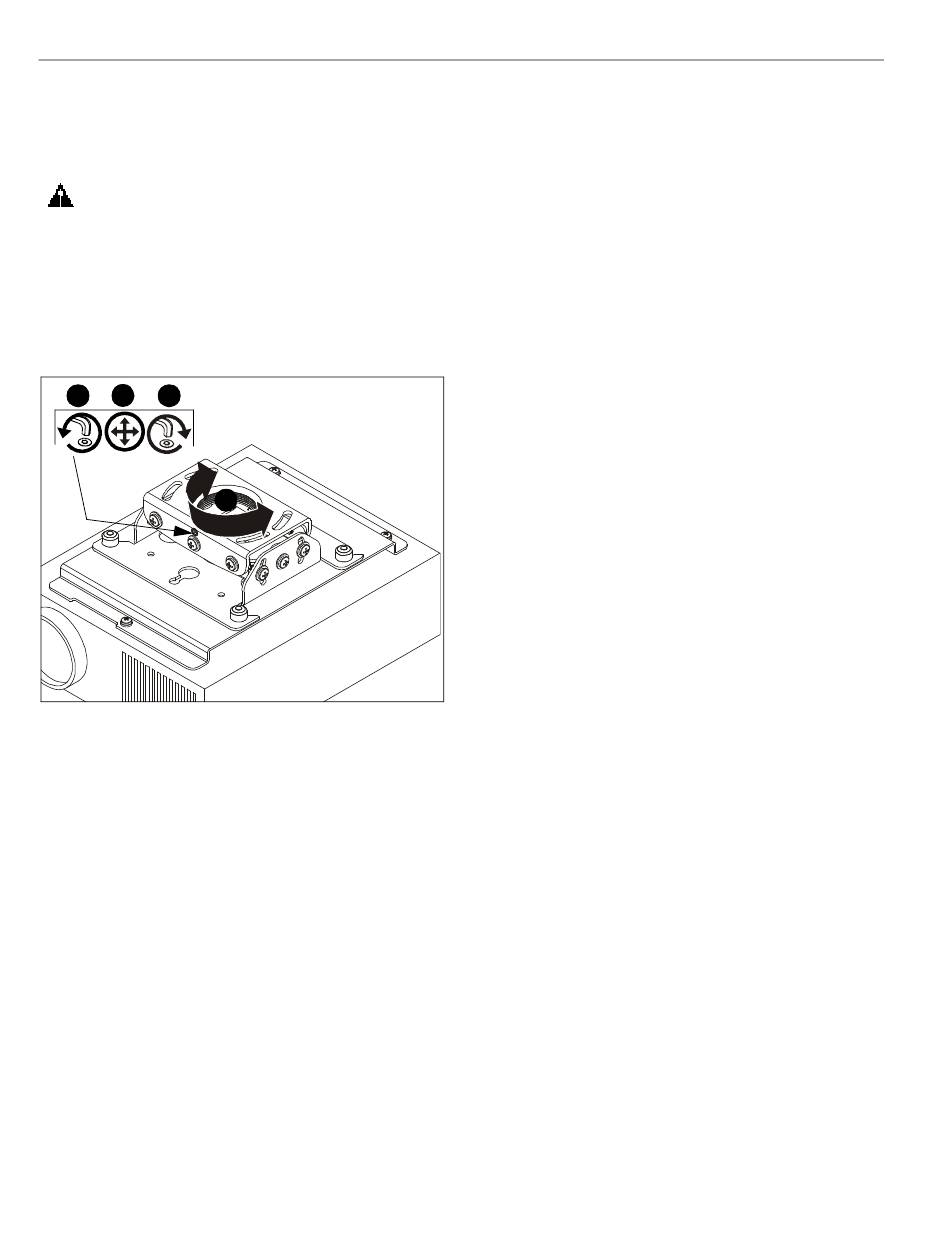

Figure 11
8
8
