Installation Instructions
4.

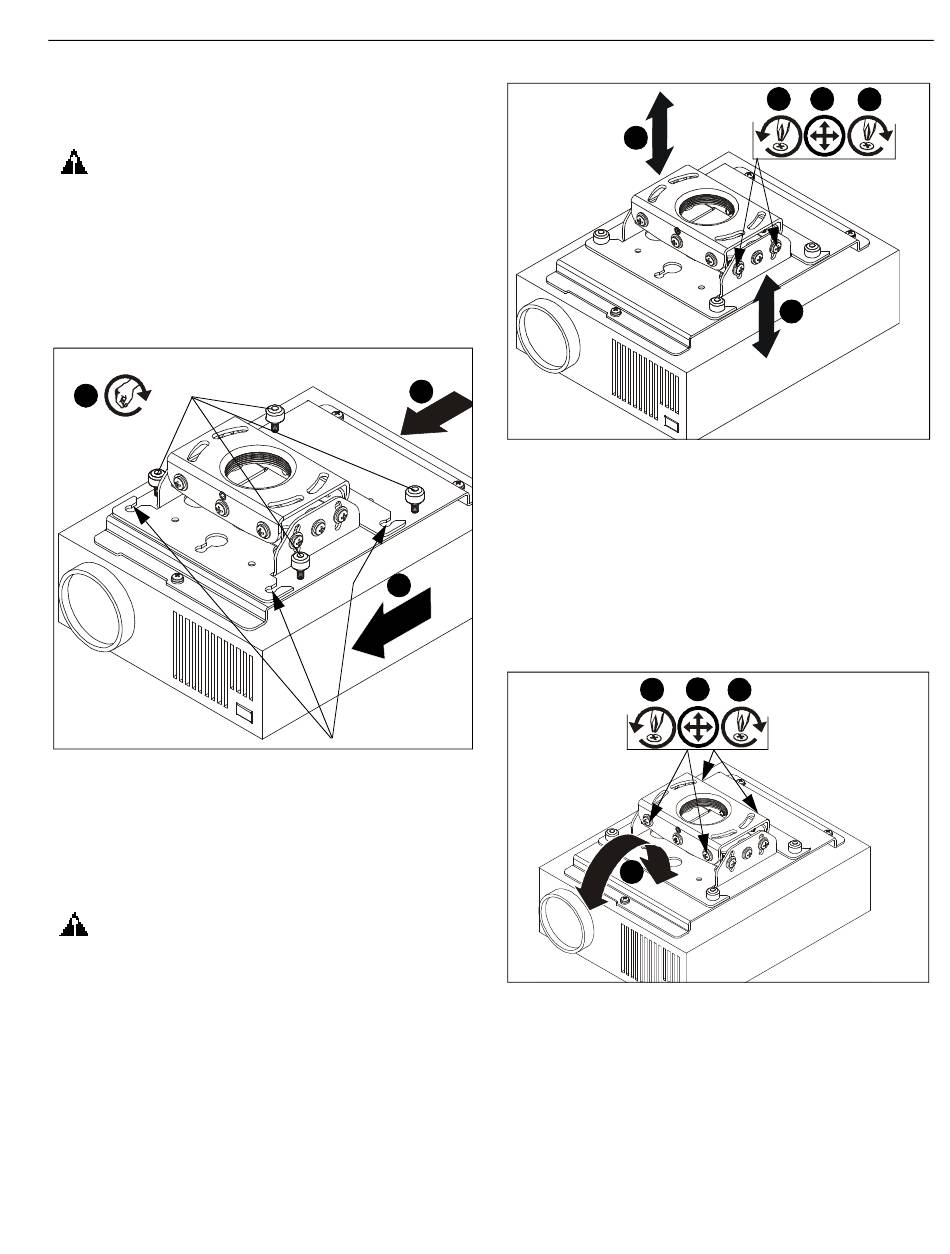

Align the thumb nuts on the interface bracket with the
locating slots on the RPE projector mount. (See Figure 8)
5.
Slide the interface bracket with attached projector to the
limit of the locating slots. (See Figure 8)
WARNING:
IMPROPER INSTALLATION CAN LEAD TO
PROJECTOR FALLING RESULTING IN SERIOUS
PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make
certain mounting slots in RPE projector mount base slide
under thumb screws and that screws are seated in the back
of locating slots.
6.
Tighten thumb nuts to secure projector in place.
(Mounting structure not shown for clarity)
x 4
6
Figure 8
7.
Route all cables as required.
ADJUSTMENTS
The RPE projector mount can be adjusted for pitch (vertical
elevation), roll (horizontal tilt), and yaw (rotation).
WARNING:
OVER-LOOSENING OR REMOVAL OF
HARDWARE MAY RESULT IN PERSONAL INJURY OR
SERIOUS DAMAGE TO EQUIPMENT! RPE projector mount
and hardware is to be loosened only enough to allow for
necessary movement.
Pitch (Vertical Elevation)
Adjust pitch using the two pitch adjustment screws located on
each end of the RPE.
1.
Loosen two pitch adjustment screws located on each end of
the RPE.
2.
Adjust projector angle to desired pitch. (See Figure 9)
3.
Tighten two pitch adjustment screws located on each end of
the RPE.
5
Roll (Horizontal Tilt)
Adjust roll using the four roll adjustment screws, two on front
and two on the back of the RPE.
4.
5
5.
6.
Locating slots
2
Figure 9
Loosen two roll adjustment screws on each side of the RPE.
Adjust projector to desired position. (See Figure 10)
Tighten two roll adjustment screws on each side of the RPE.
5
4
5
Figure 10
RPE
1
2
3
x 4
2
6
x 4
7
