Troy-Bilt TB70SS Manuel D'instructions

2-Cycle Trimmer
TB70SS

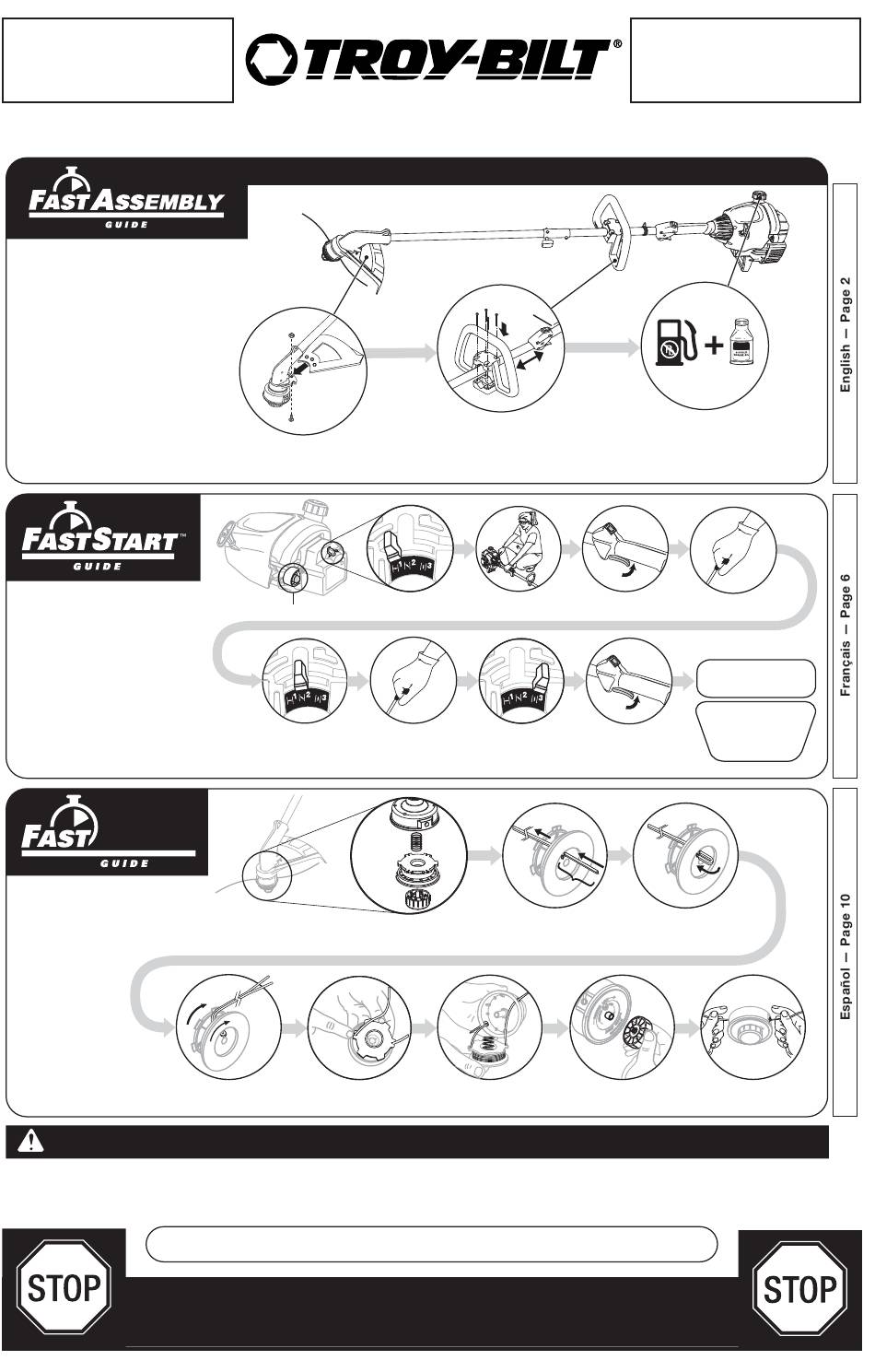

Quick Instructions to
Assemble Straight
Shaft String
Trimmers
for complete instructions
see page 3.
Quick Instructions
to Start Engine
for complete instructions see page 4.
LINE
RELOAD
Quick Instructions to
®
Replace SplitLine
Trimmer Line
®
Replacement SplitLine
Part #49U2341K953
For single line installation,
see page 4.
For replacement spool
installation, see page 4.
Wind line tightly in direction of arrow.
Split other end of SplitLine
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING THE UNIT.
Call 1–800–828–5500 in U.S. or 1–800–668–1238 in Canada
PART NO. 769-04577 P00
Read and understand all instruction, warning and danger labels on the unit.
Slide the shield onto the shield mount.
Place hex lock nuts into the 3 holes.
Insert screws from the bottom. Tighten.
Press primer bulb 10 times.
Move choke lever to
Position 2.
Push 6"-7" ends into
®
back 6"-7". 0.095" holding slots.
Need help?
DO NOT RETURN THIS PRODUCT
For Assistance please call 1-800-828-5500 (U.S.) or 1-800-668-1238 (Canada)
or visit www.troybilt.com or www.troybilt.ca
Grip
Put handle on shaft. Move handle
6 inches away from shaft grip.
Insert screws and tighten.
Put choke lever in Crouch in starting
Position 1. position.
Pull the rope until engine Move choke lever
starts. Run engine for to Position 3.
30-60 seconds to warm up.
Spool
Spring
Inner
Reel
Bump
Knob
Unscrew Bump Knob™ Insert 10' of 0.095"SplitLine
counterclockwise. Remove hole in top of reel. Pull most of line
through hole until 3"-4" remains.
inner reel and spring.
Insert lines through eyelets in spool.
Insert spring and reel into spool.
Operator's
6"
1 Gallon
Mix thoroughly in a separate fuel can:
– 3.2 oz of 2-cycle engine oil
– 1 gallon of unleaded gasoline
Place the unit on a level surface. Fill fuel tank.
NOTE: Do not mix directly in the engine fuel tank.
SQUEEZE and HOLD throttle
control for ALL further steps.
Continue squeezing the
throttle control and run engine
for additional 60 seconds to
complete warm up.
3"-4"
®
through Bend short end and push it
into the other hole. Pull tight.
Hold the inner reel in place.
Tighten Bump Knob clockwise.
Manual
40:1
3.2 oz
5 X
Pull the rope
5 times.
DIDN'T START?
Repeat these instructions.
If engine still fails to start, refer
to page 4 of this manual
for additional starting and
troubleshooting
information.
Pull lines firmly to release
from holding slots.
(11/07)
