Owner's manual

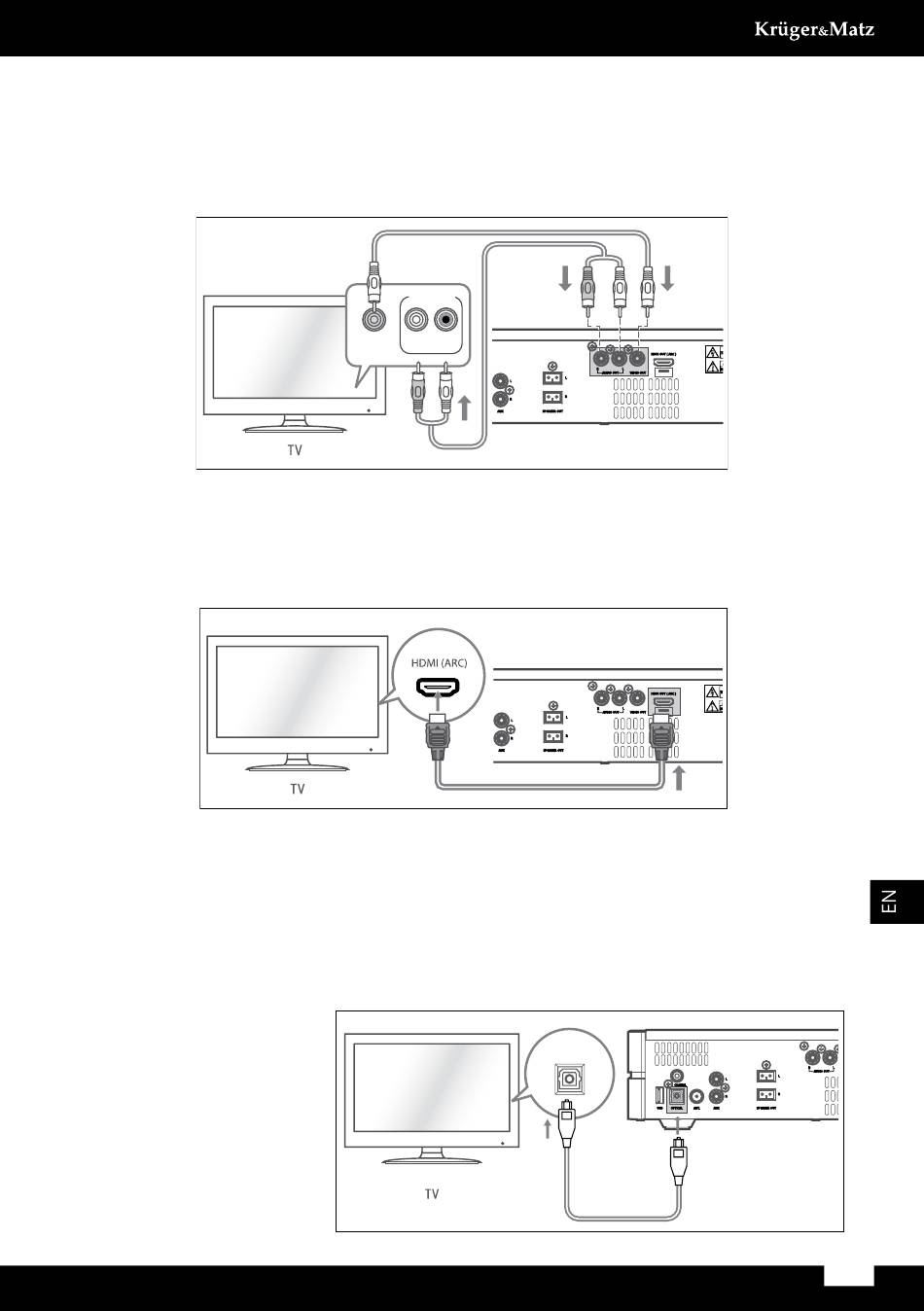

Connecting to the composite video socket
• connect the composite video (yELLOW) cable to the VIDEO socket on this unit
and the video input socket on the TV.
• Then connect audio cables (RED/WhITE) to the AUDIO OUT R / L sockets on this
unit and the audio input sockets on TV.
Connecting HDMI
Use a hDMI cable (not included) to connect the hDMI ARc socket on the unit and
to the hDMI ARc socket on the TV.
Tips:
• Your TV must support the hDMI-cEc and ARc function. hDMI-cEc and ARc must
be set to On.
OPTICAL Socket
connect an OPTIcAL cable (not included) to the TV's OPTIcAL OUT socket and the
OPTIcAL socket on the unit.
AUDIO IN
VIDEO R L
OPTICAL
