5.7

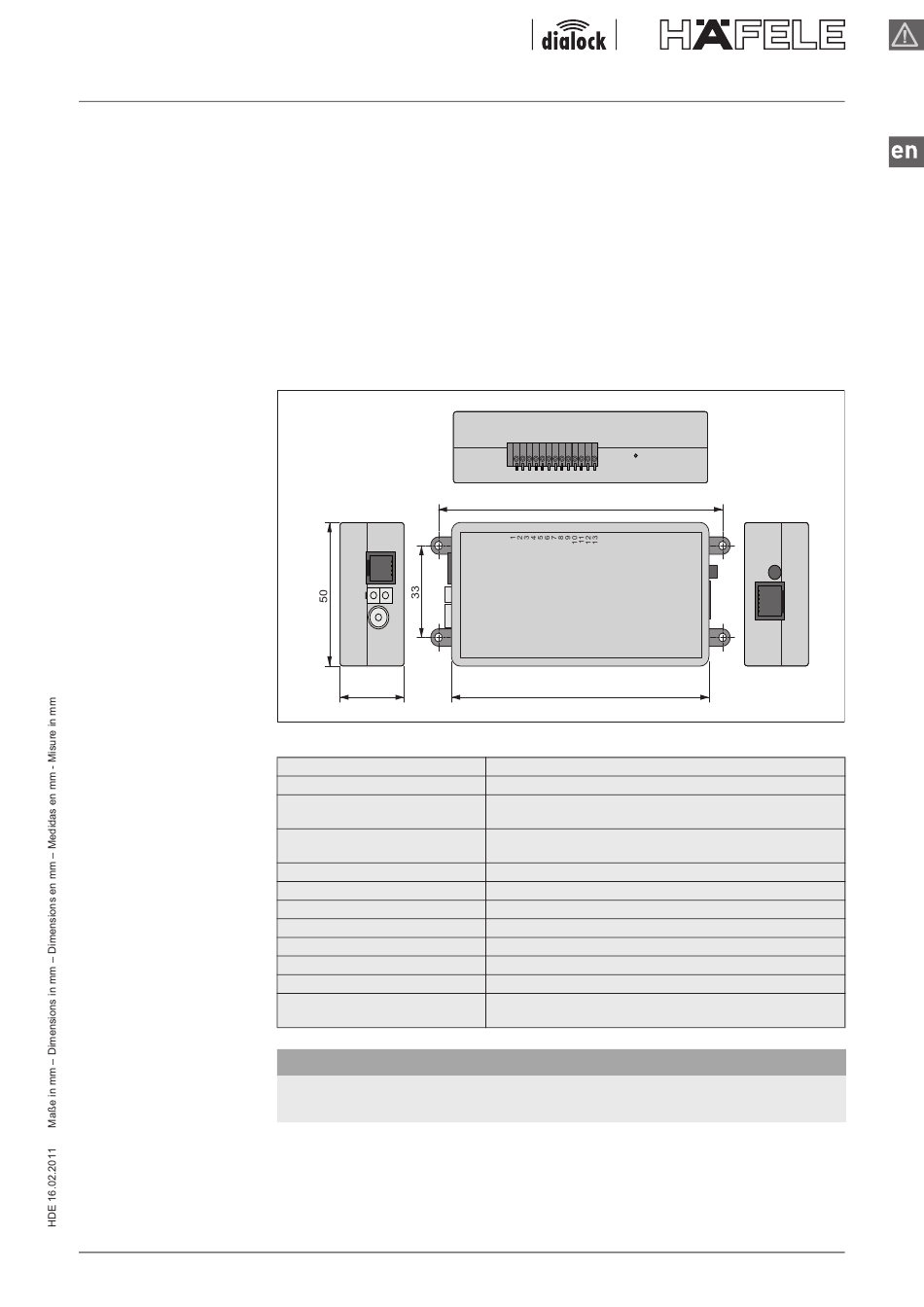

Dimensioned drawing

5.8

Technical data

Terminal 6+7, 8+9:
Signal input 1 and 2, current-controlled input (optocoupler). It is designed for an input current of 20 mA.
An internal power source for controlling this input is available. The states of the inputs can only be
evaluated in a Dialock macro programme.
Terminal 10, 11, 12:
Potential free relay output with NO, NC, COM. This relay can only be controlled by a Dialock macro
programme. A possible power delay set in the DFT V2 does not affect this output.
Technical data:
• Switching capacity, max. 60 VA, 30 W
• Switching voltage, max. 125 V AC, 60 V DC
• Operating current, max. 1 A
Terminal 13:
5V output. The voltage of this output can be switched via the relay output to the consumer to be switched
for a direct activation of small consumers, such as piezo buzzers (or other signal generators).
25,5
Dimensions
Voltage supply
Current consumption
Cable length for the
voltage supply
Socket 1
Socket 2
Socket 3
Socket 4
Inputs / outputs
Temperature range
Humidity
Fuse
NOTE
The start-up, programming the keys and setting of the operating parameters are accomplished in ac-
cordance with the operating instructions BA DFT V2 (Cat No. 732.29.135).
1 13
1 13
1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13
Reset Reset Reset Reset
112
Reset
Output
EFL 3
DFT
MLA 6
Power
Output
Antenna/
LED
100
L 100 mm x W 50 mm x H 25 mm
12–17 V DC
Typically 100 mA, max. 850 mA
(with external antenna and 11 lock cases EFL 3)
100 cm
RJ10 for EFL 3 or MLA 6
AMP Mate-N-LOK for FLC or 6 x distributor
SMB external antenna with LED
RJ11 for MLA 8
Cable cross section max. 0.5 mm
0 – 65°C
0 – 90%, not condensating
0.75 A internal at the power output
(against overload and short circuit)
Power
Supply
Output
MLA8
