3. Structure and function

3.1 System overview

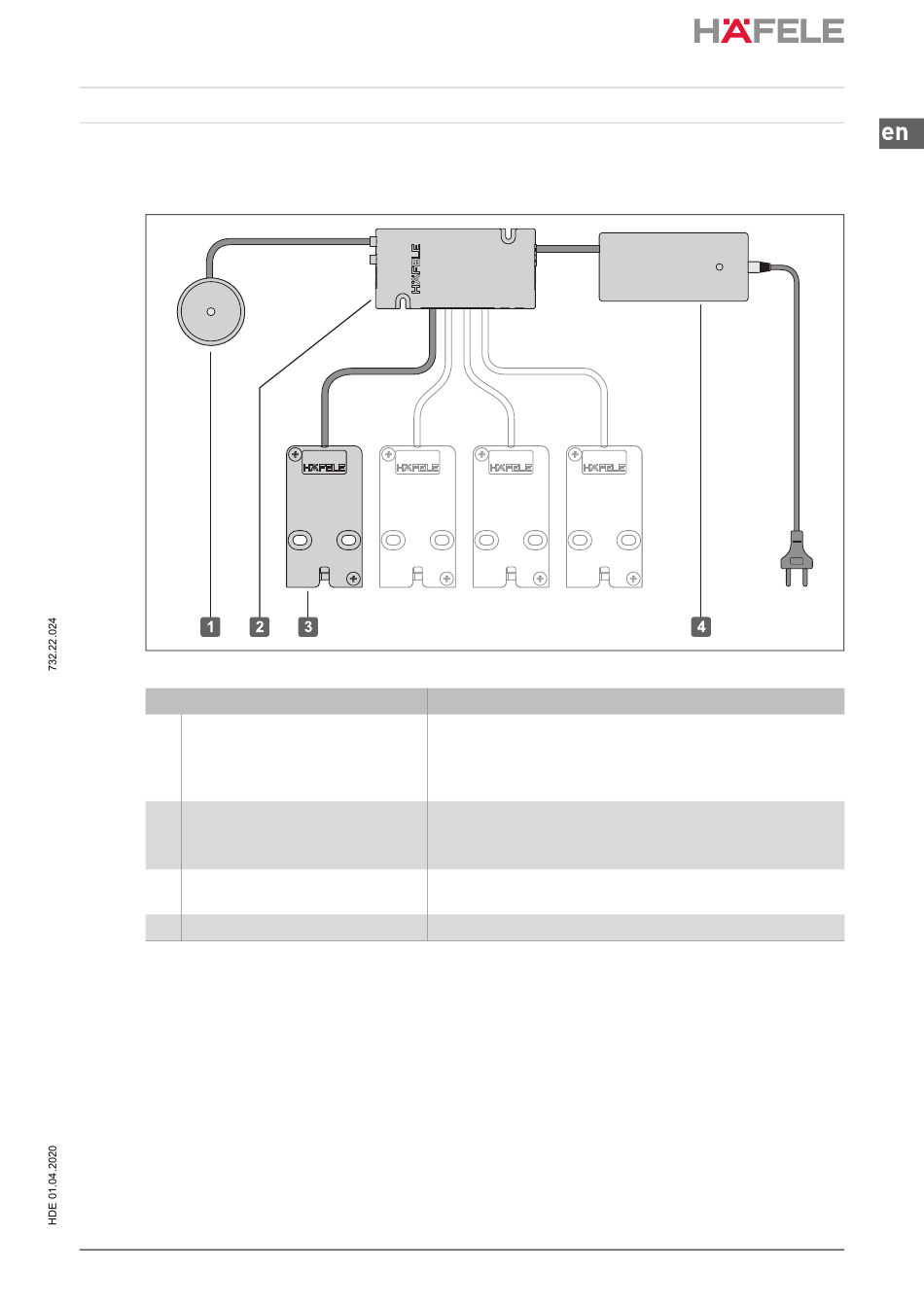

The following overview displays the basic system components.
Fig. 1: Overview
Basic components
1 Antenna FAN 200
2 Furniture terminal
FT 200 / FT 200 CAP
3 Furniture lock
EFL 3 / EFL 3C
4 Power supply unit PS 4
Description
• Reader unit with integrated LED
• LED red/green
Red: In operation, lock engaged
Green: Lock disengaged
• System control unit
• Connections for max. 4 furniture locks
EFL 3 / EFL 3C
• Electronically operated furniture lock
• Voltage supply
