This rangehood is designed to be connected to a remote blower (pur-
chased separately). CAUTION: To reduce the risk of fire and electric
shock, install this rangehood only with remote blowers rated a maxi-
mum 1.8 Amp, suitable for use with solid state fan speed controls. The
remote blower requires a separate wiring cable that should be installed
at the same time that the ductwork is installed. For best results, 10"
duct is recommended for the remote blower.
PLAN YOUR DUCTWORK
To ensure that the blower performs to its highest
possible capacity, ductwork should be as short
and straight as possilbe.
The ductrun should not exceed 55 equivalent
feet if ducted using the required minimum of
10" round duct. Calculate the length of the
ductwork by adding the equivalent feet in FIG-
URE 2 for each piece of duct in the system An
example is given in FIGURE 3.
45˚ Elbow
90˚ Elbow
90˚ Flat Elbow
Wall Cap
FIGURE 2
9 Feet Straight Duct
2 - 90˚ Elbows
Wall Cap
Total System
FIGURE 3
For best results, use no more than three 90°
elbows. Make sure that there is a minimum of
24" of straight duct between elbows if more
than one is used. Do not install two elbows
together. If you must elbow right away, do it
as far away from the hood's exhaust opening
as possible.
INSTALL THE RANGEHOOD
1. Remove the rangehood , as seen in (FIGURE 5) from the carton
and place on a flat surface. Cover the surface to prevent accidental
damage. Remove all parts including the literature package before
discarding the carton.
1. Disconnect and move freestanding range from cabinet opening to provide easier access
to upper cabinet or custom hood. Put a thick, protective covering over cooktop, set-in
range or countertop to protect from damage or dirt.
2. Determine and clearly mark with a pencil the center line on the cabinet or custom hood
where the rangehood will be installed.
3. Determine and make all necessary cuts in the wall and/or ceiling for the ductwork.
Install the ductwork before the rangehood.
4. Determine the proper location for the Power Supply Cable. Use a 1
this hole. Install the cable. Use caulking to seal around the hole. DO NOT turn on the
3.0 feet
power until installation is complete.
5.0 feet
12.0 feet

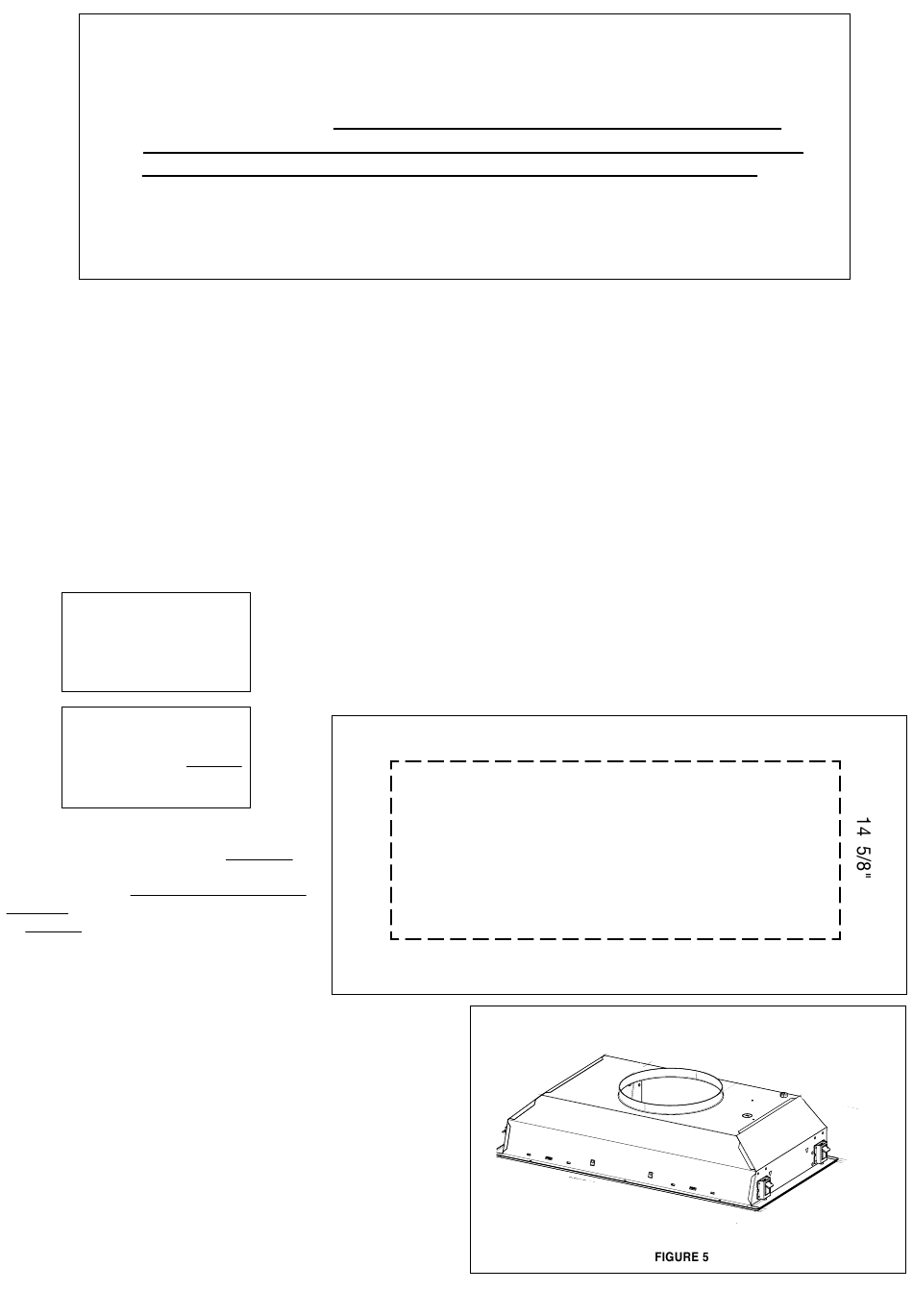

5. Make the cut-out opening where the rangehood will be installed (FIGURE 4).
0.0 feet
9.0 feet
10.0 feet
0.0 feet
19.0 feet
ATTENTION
MAKE YOUR CUT-OUTS
CUT-OUT
37"
FIGURE 4
Drill Bit to make
1/4"
