10

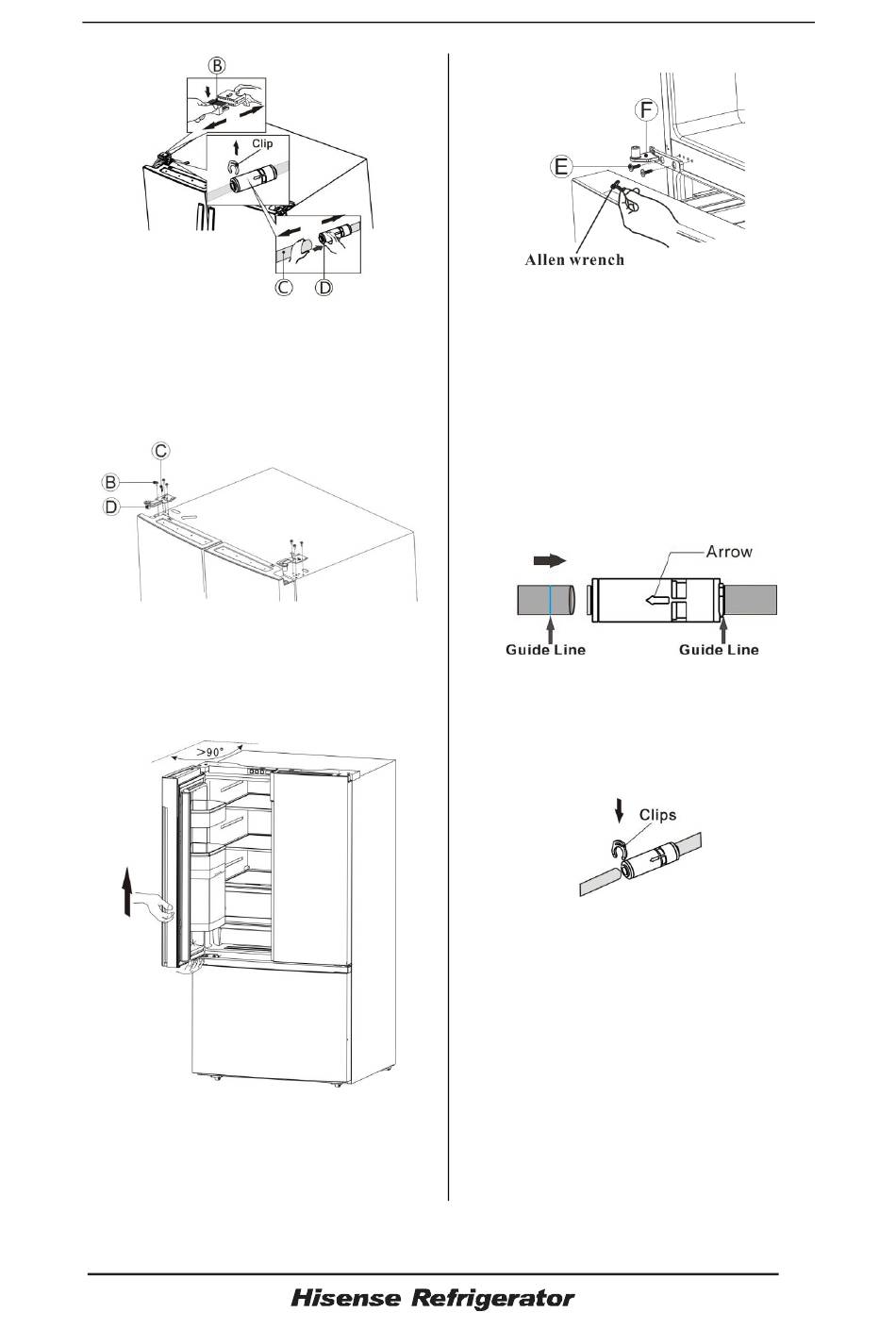

3. Remove the 3 screws (B) fixed on the
hinges with a Wrench (8mm) and 1 ground
screws (C) attached to the hinge with
Philips (+) screwdriver. Remove the upper
left and right door hinges (D).
4. Use your both hands to open the door
more than 90
°
. Lift it up and take it off.
（
B e careful of racks while remove the
door.
）
5. Remove the 4 hex head bolts (E) with
an Allen wrench (4 mm). Remove the 2
screws with screwdriver. Then remove the
lower left and right door hinges (F).
Re-attaching the fridge doors
To reattach the fridge doors after you have
moved the appliance to its final location,
assemble the parts in reverse order.
1. To prevent water leaks, the water line
should be fully inserted into the center of
the coupler until the guide lines are
coincided exactly with the head of the
movable part.
Note
： ： ： ：
Arrow on the water line coupler point to
the direction of the door.
2. Make sure the clips are properly
connected to the coupler.
Caution!
In case the fridge doors can't be
self-closed, please make sure the door
opened more than 90
or re-attaching the fridge doors.
Disassembling the freezer door
1. Pull out the freezer door and the upper
freezer drawer (A) to the final position.
Then take out the ice box (B) by lifting it up
in the direction of the arrow.
w hen you remove
°
