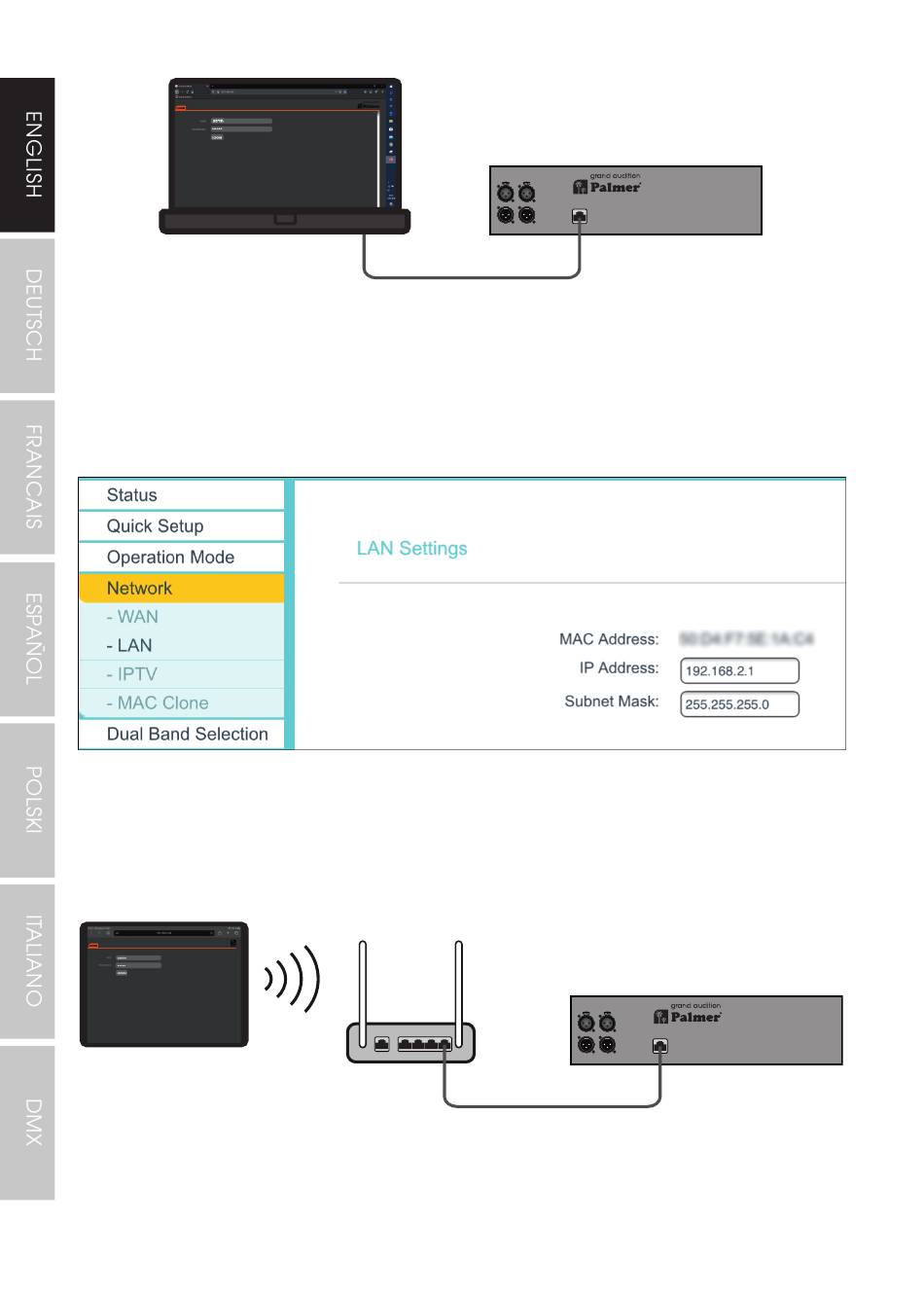

WIRELESS CONNECTION VIA WLAN

A WLAN router, which is configured with a browser-based app, is required to establish a wireless connection to
the Grand Audition MK2. Establish a WLAN connection by connecting your tablet or computer to the WLAN
router, enter the address in your browser's address line to open the configuration app, and press ENTER ( )
to confirm. Follow the information provided in your WLAN router's operating instructions. Under Network and
LAN, enter the IP address 198.168.2.1 and the subnet mask 255.255.255.0 and save the entered data (see the
example figure below).
These settings are required the first time the connection is set up because the Grand Audition MK2's IP
address and subnet mask are set by default to 192.168.2.99 and 255.255.255.0 and the value in the WLAN
router's LAN settings must be in the defined address space. The settings can be subsequently changed as
required (see Grand Audition Control App: DEVICES, Point 4 Network).
Now connect the WLAN router's LAN port to the Grand Audition MK2's Ethernet interface with an Ethernet
cable (min. CAT5e) and switch on the device. Enter the IP address 192.169.2.99 into your browser's address
line and press ENTER ( ) to confirm. The Grand Audition's control app will open and show the LOGIN win-
dow. Tip: Bookmark this address in your browser.
10
IP Address 192.168.2.99
IP Address 192.168.2.99
IP Address 192.168.2.99
Master
IP Address 192.168.2.99
IP Address 192.168.2.99
Master
IP Address 192.168.2.99
Slave 1
IP Address 192.168.2.98
Slave 2
IP Address 192.168.2.97
