AXIS Q7900 Installation Guide

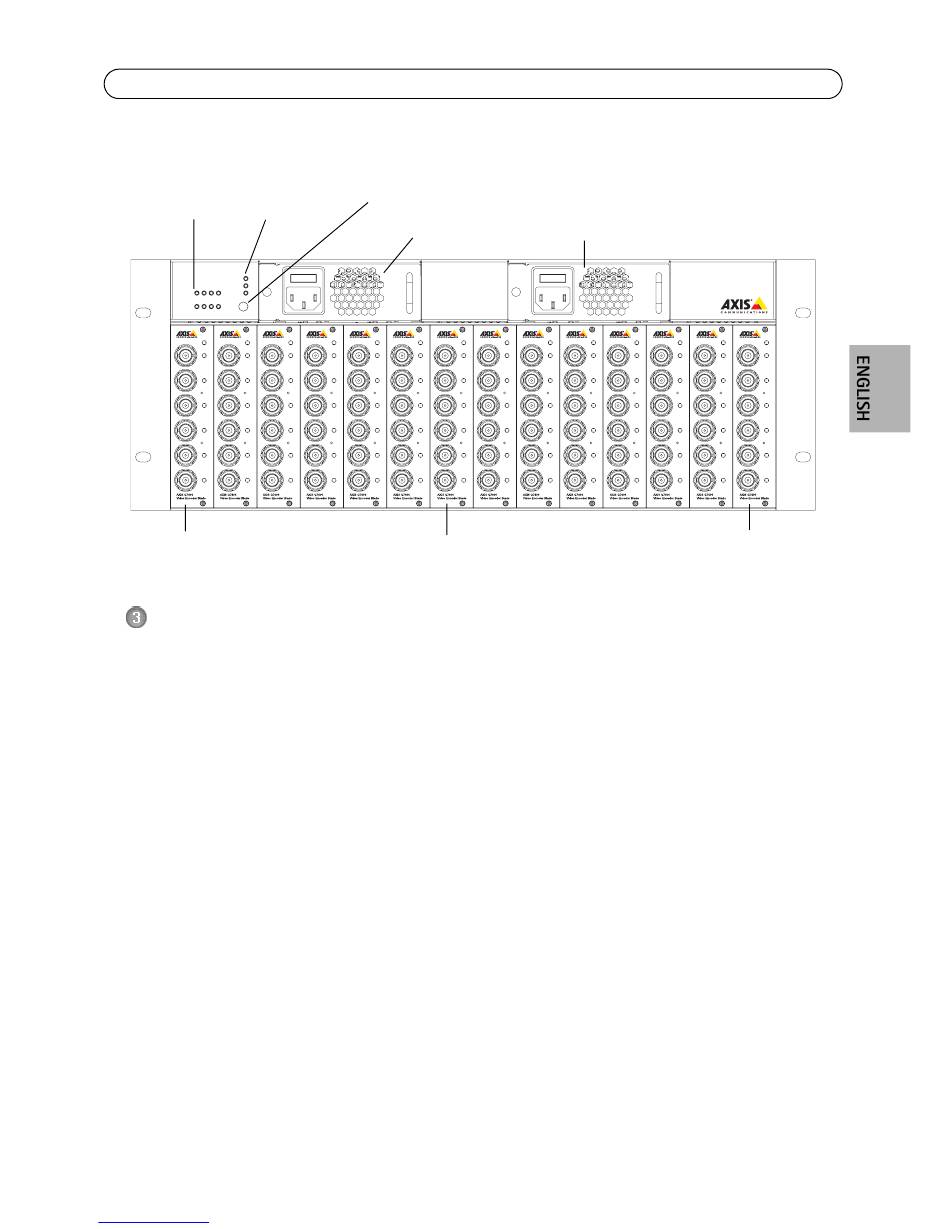

AXIS Q7900 Rack (FrontView)
Network Activity &
Loop LEDs 1-4
ACTIVITY
LOOP
Slot 1
Install the hardware
General placement requirements
The location of the AXIS Q7900 must meet the following requirements:
•
Ambient temperature: 0° to +45°C (32° to 113°F)
•
Relative humidity: 20-80%
•
Power source within 1.8 meters
•
There must be a minimum of 5cm free space on the top, bottom, front and rear of the AXIS
Q7900 to ensure adequate ventilation
•
No excessive dust
Placement requirements for installation in a 19" equipment rack
When mounting the AXIS Q7900 in an equipment rack, never stack other units directly on top - the
mounting brackets are not designed to support more than 1 unit.
•
Pozidriv screwdriver #1
•
Pozidriv screwdriver #3
•
The AXIS Q7900 must be grounded to the same ground as the equipment rack.
•
The equipment rack must be braced and bolted to the floor.
