Model
Power requirement
Operating temperature *
Operating humidity
Power consumption (Maximum)
Dimensions (excluding protrusions)
Weight
* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.
In such cases, please check the temperature condition specified by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Mounting Precautions (For SHARP dealers and service engineers)
• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.

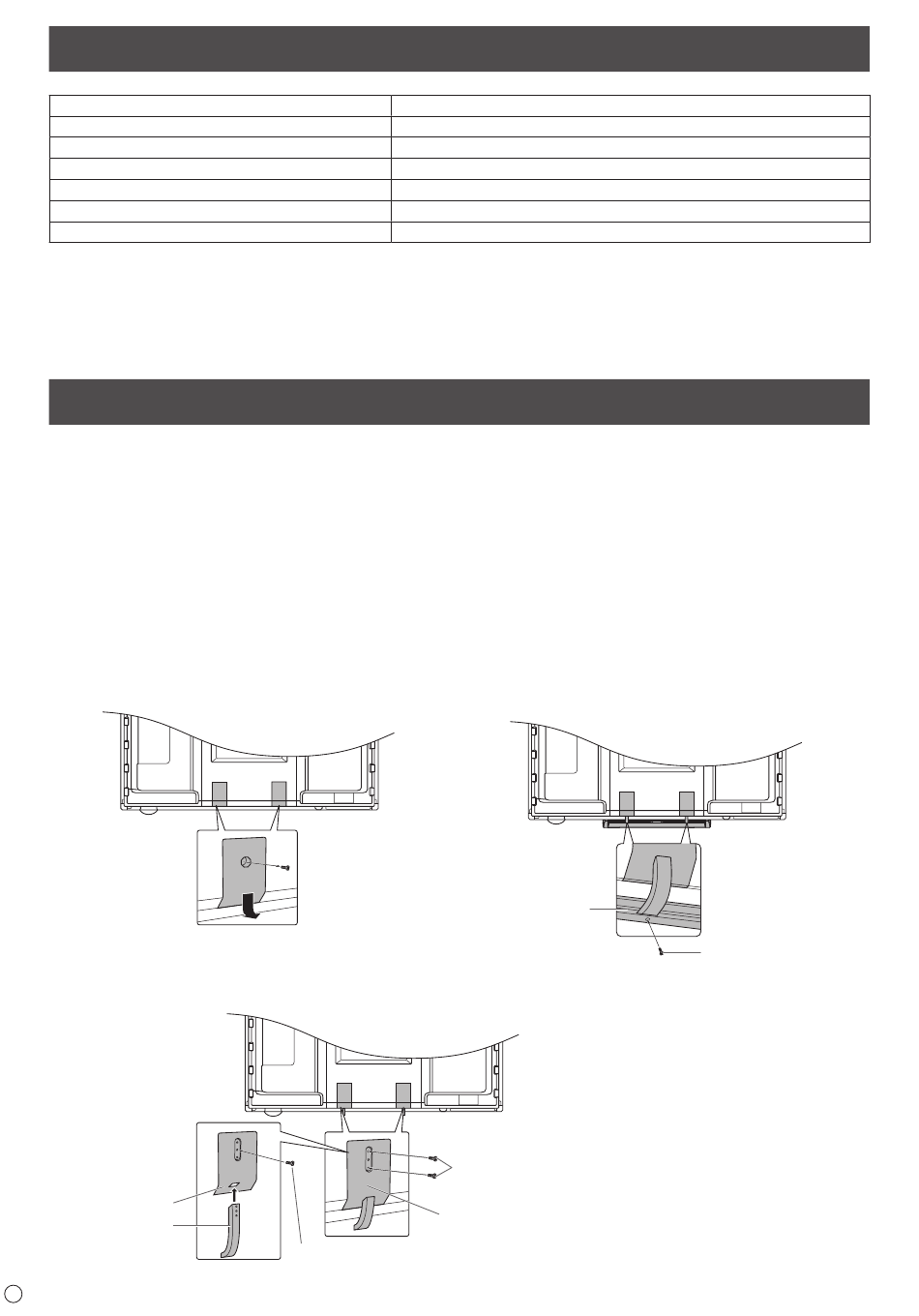

nAttaching the Tray
1. Remove the cover from the back of the monitor.
2. Secure the tray mounting fitting.
Secure using the screw removed in step 1 and 2 M5 tray
mounting screws (supplied).
Cover (supplied)
Bracket (supplied)
8
E
Specifications
PN-L702B
AC 100 V - 240 V, 2.8 A, 50/60 Hz
41°F to 95°F (5°C to 35°C)
20% to 80% (no condensation)
235 W [When PN-ZB01 (optional) is attached: 240 W]
inch (mm) Approx. 64-7/8 (W) x 4-9/16 (D) x 38-11/16 (H) (1,648 x 116 x 982)
lbs. (kg) Approx. 154.3 (70) [PN-ZB01 (optional): Approx. 1.102 (0.5) ]
(2)
(1)
Screw removed in step 1
3. Secure the tray.
Insert the tray into the tray mounting fitting and secure with
2 M4 tray mounting screws (supplied).
Tray
(supplied)
(3)
M5 tray mounting screws
(supplied)
Tray mounting
fitting
M4 tray mounting screws
(supplied)
