Hazardous (Classified) Location
Class I, Division 1, Group A,B,C,D
Class I , Zone 0 and 1, Group IIC
Class II, Division 1 Group E, F, G
Intrinsically safe apparatus
entity parameters:
Vmax. (Ui) ≥ Voc (Uo)
Imax. (Ii) ≥ Isc (Io)
Pi ≥ Po
Ca ≥ C cable + Ci
La ≥ L cable + Li
The sum of capacitance and inductance
of cable and intrinsic safe equipment
must be less or equal to Ca and La
Installation notes:
1) The maximum nonhazardous location voltage is 250 VAC/DC.
2) The installation shall be in accordance with the National Electrical Code
NFPA 70, Articles 504 and 505.
3) The terminals of the two individual channels shall not be interconnected in any
way.
4) Install in Pollution degree 2 or better
5) Use 60 / 75 °C copper conductors with wire size AWG: (26 – 14).
6) Warning: Substitution of components may impair intrinsic safety.
14

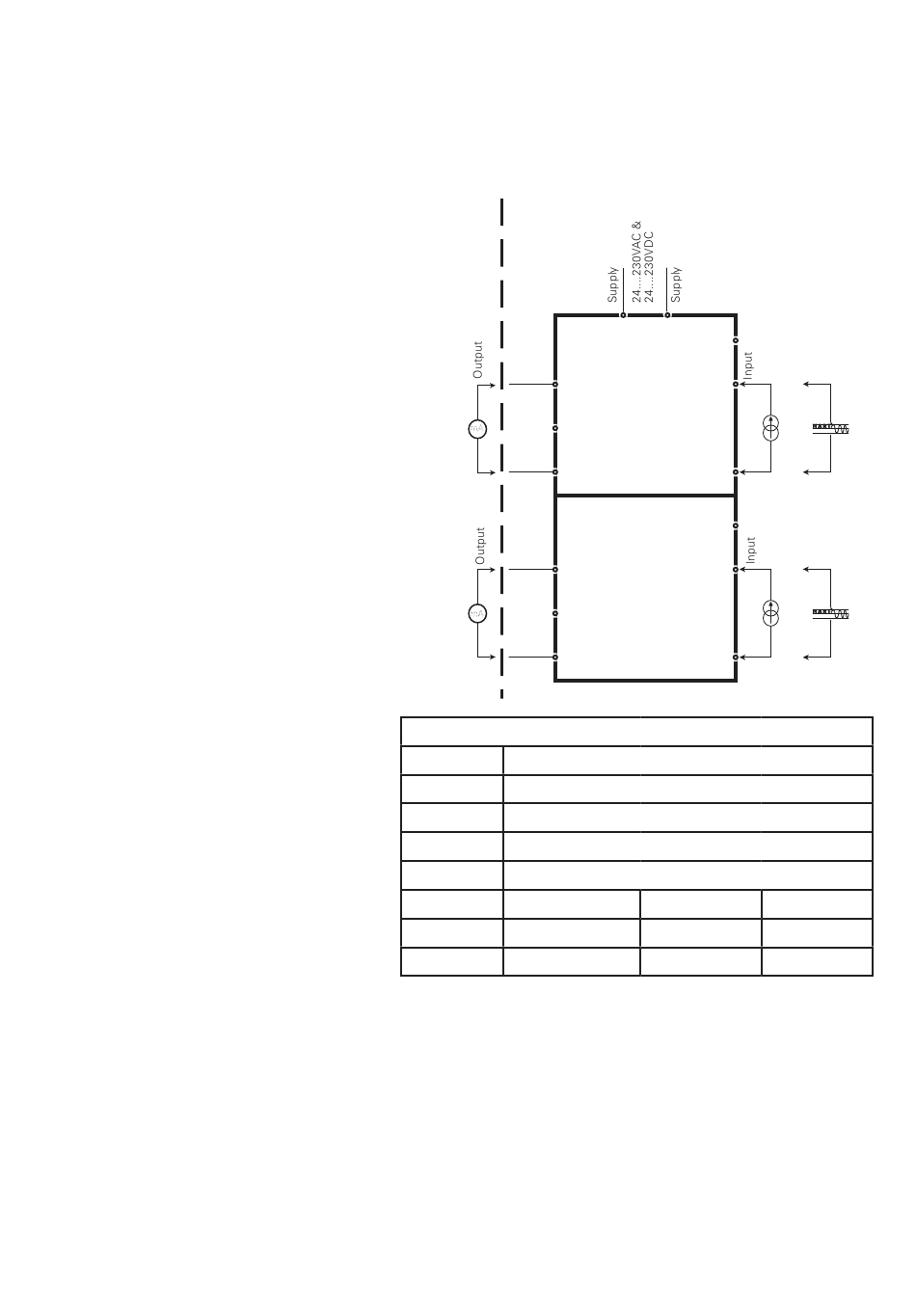

CONTROL DRAwING 5107QU01
5107V103-FR
43
+
42
mA
-
41
53
+
52
mA
-
51
5107B Associated apparatus parameters
CH1
Terminals 41 to 43
CH2
Terminals 51 to 53
Voc (Uo)
28 V
Isc (Io)
93 mA
Po
0.65 W
IIC / grp. A,B
Ca (Co)
0.06 μF
La (Lo)
2.4 mH
Nonhazardous
Associated apparatus
Galvanically isolated
31
33
13
12
11
CH1
23
22
21
5107B
CH2
IIB / grp. C
0.52 μF
12 mH
Rev. AA 2003-01-22
+
-
+
-
IIA / grp.D
1.72 μF
20 mH
