E
LECTRICAL SAFETY DEVICES
The installation must be installed according to the current regulations
and laws.
Use the T2 electronic control unit.
For connections and technical data of accessories refer to the
appropriate booklets.

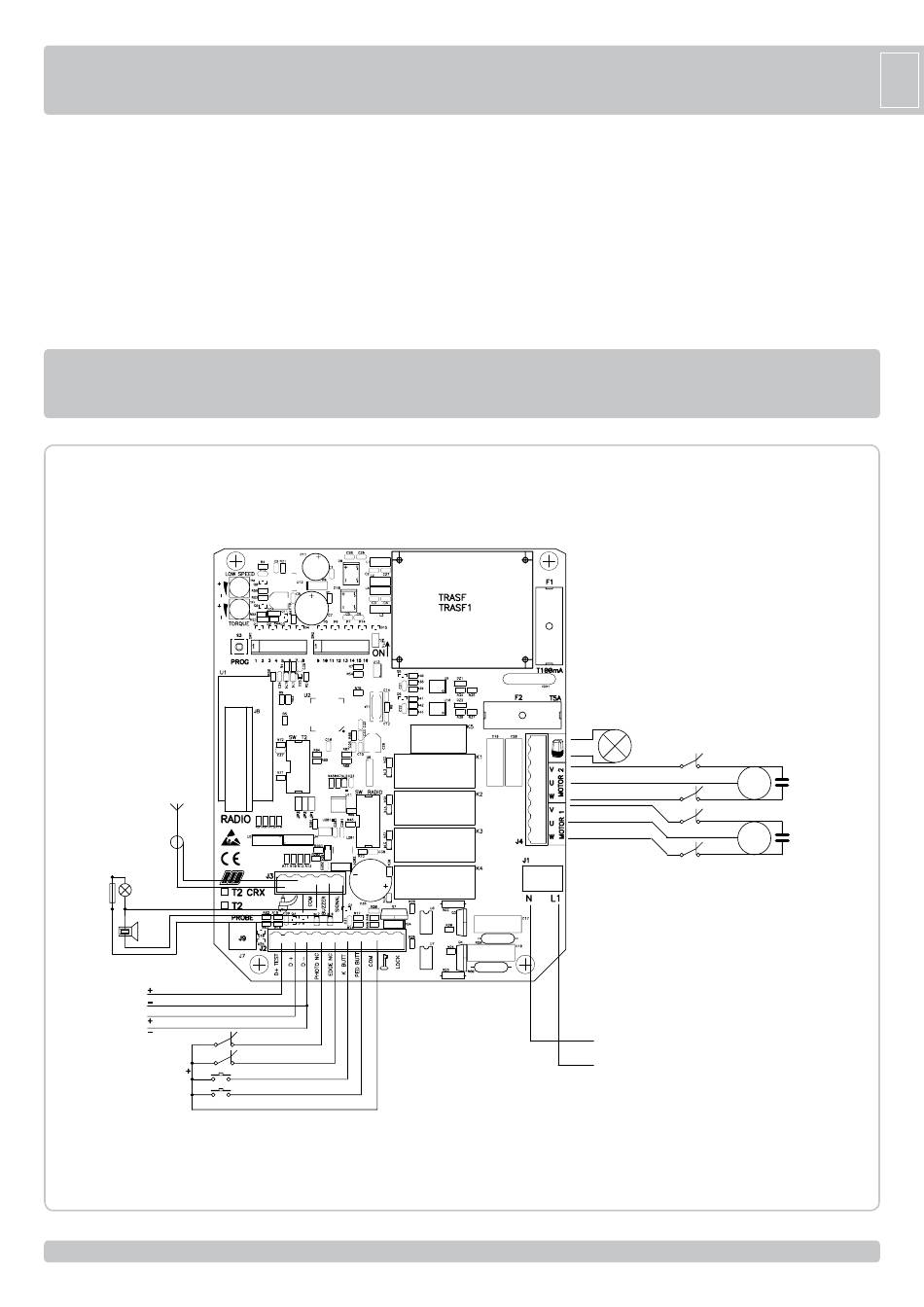

ELECTRIC CONNECTIONS

AERIAL
COAX
R=2,2KΩ SIGNAL
BUZZER
+
-
12Vdc for
+
AUTOTEST EDGE
-
12Vdc for
+
ACCESSORY
-
SUPPLY
+
PHOTOCELL
EDGE
K BUTTON
PED. BUTTON
COM
M
AINTENANCE
To be undertaken by specialized staff after disconnecting power
supply.
Clean the wheel contact surfaces carefully once a week.
Check wheel/ground pressure and condition of motor wheels every six
months.
The motor should be overhauled every two years and the oil replaced.
POWER SUPPLY
27
27
T2 code BC07086
T2 CRX code BC07085
LSC1 - limit switch close M1
LSO1 - limit switch open M1
LSC2 - limit switch close M2
LSO2 - limit switch open M2
BLINKER
LSO2
CAPACITOR M2
MOTOR 2
LSC2
LSO1
CAPACITOR M1
MOTOR 1
LSC1
G
B
