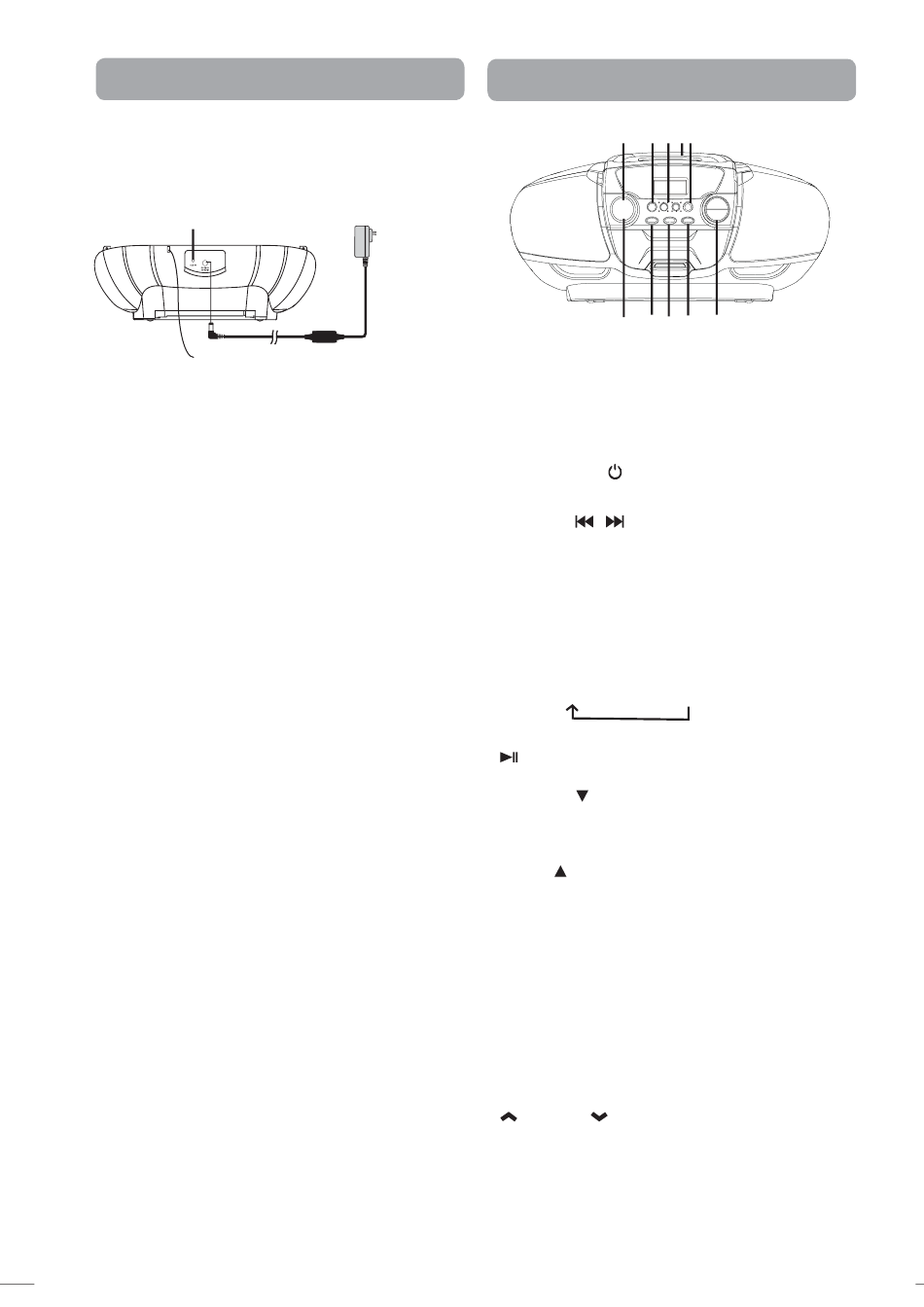

System Connections

Using the AC Adaptor
Using an AC adaptor other than the one supplied with
the unit may damage the unit. This AC adaptor oper-
ates on AC 100-120V~ 50-60Hz.
AUX IN jack AUX IN jack
To "DC IN 9V" jack To "DC IN 9V" jack
FM Antenna Wire FM Antenna Wire
Cautions:
• Before use, ensure the rated voltage of the adaptor
matches your local voltage.
• The included AC adaptor is for use with this unit
only. Do not use it with other equipment.
• If you are not going to use the unit for a long time,
disconnect the AC adaptor from the wall outlet.
• Whenever the AC adaptor is plugged in to a wall
outlet, electricity is running through the unit, even
when the power switch is turned off.
Battery Power
You can insert 6 D-sized alkaline batteries (not
supplied) and can take your stereo just about
anywhere. Open the battery compartment door on the
back of the unit by pressing down on the arrow and
pulling out the cover. Insert batteries in the battery
compartment.
FM Antenna Wire
Do not connect the FM antenna wire to an outside
antenna.
All manuals and user guides at all-guides.com
AC adaptor
To AC
outlet
1. ENTER–
To confirm an action on an iPhone/iPod.
2. ON / STANDBY
To turn power on or off (STANDBY mode).
3. – TUNE +,
In radio mode – To tune up or down radio frequency.
In iPod mode – Press to search/skip track backward or
forward.
4. iPod/iPhone DOCK–
5. SOURCE –
To select Radio, iPod or AUX IN mode.
6.
7. MEMORY/
In Radio mode – To set radio preset channels.
In iPod mode – Press this key for iPod menu navigation.
8. MODE/
In Radio mode – Press this key to toggle between
Stereo mode & Mono mode (when both modes are
available for the tuned FM station).
In iPod mode – Press this key for iPod menu navigation.
9. MENU/ EQ –
In iPod mode – Press this key to return back to last
menu.
In iPod / Radio / AUX IN mode – Press & hold the key
for 2 seconds or more to select among sound effects:
Flat/Rock/Jazz/Pop/Classical.
10.
To increase / decrease the volume.
EN - 3

General Controls

2 3 4 5
1
6 7 8 9
–
/ –
RADIO >iPod> AUX IN
– To start or pause iPod playback.
–
–
VOLUME –
10
