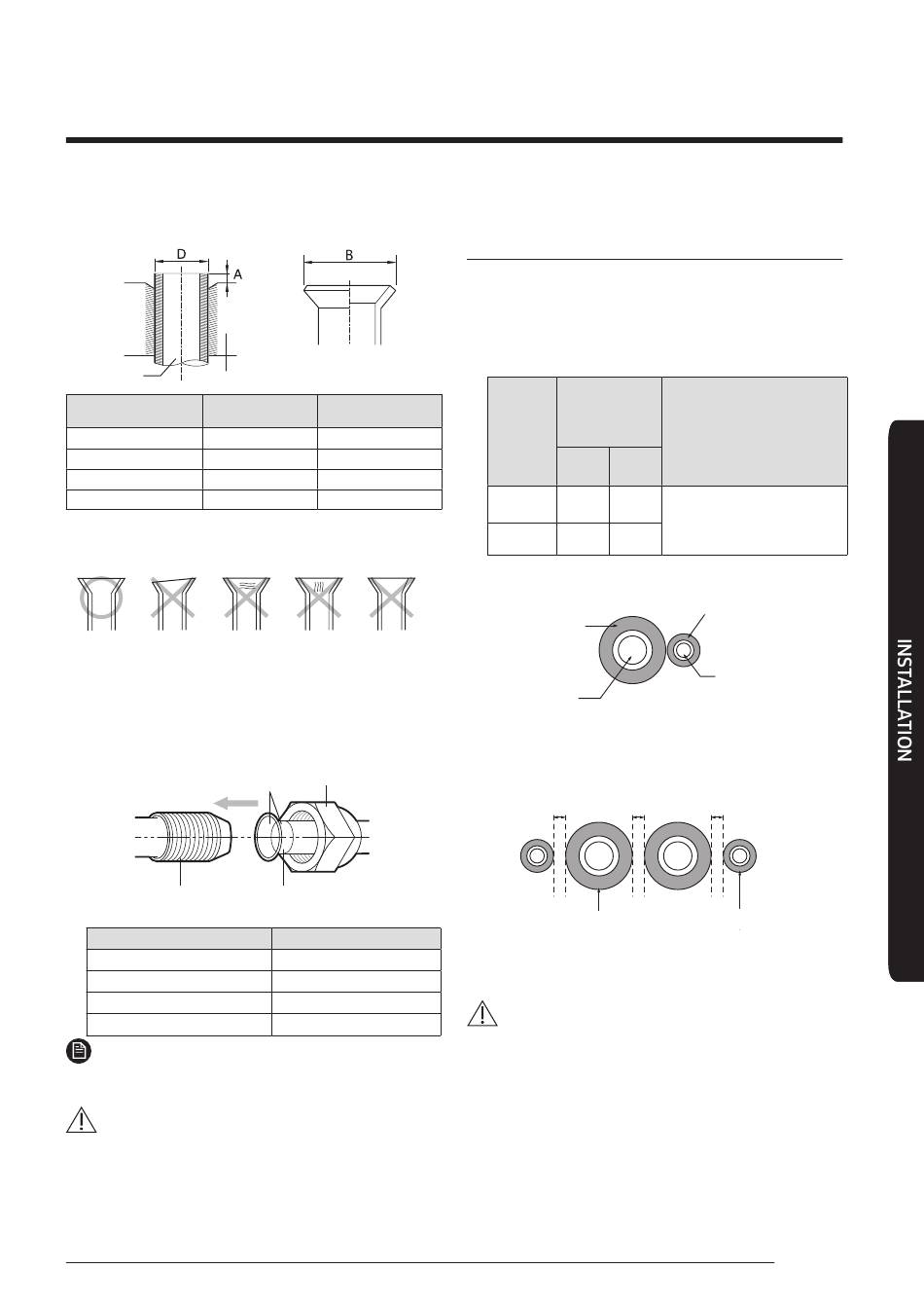

4 Put a flare nut slightly into the pipe and modify the
flare.
Pipe
Flare
Outer Diameter (D) Depth (A)
Φ6.35 mm 1.3 mm
Φ9.52 mm 1.8 mm
Φ12.70 mm 2.0 mm
Φ15.88 mm 2.2 mm
5 Check that the flaring is correct, referring to the
illustrations below for examples of incorrect flaring.
Oblique Damaged
Surface
6 Align the pipes to connect them easily. Tighten the
flare nuts first with your hands, and then with a
torque wrench, applying the following torque:
Apply frozen oil
Indoor outlet pipe
Outer Diameter (D)
Φ6.35 mm
Φ9.52 mm
Φ12.70 mm
Φ15.88 mm
NOTE
• Excessive torque can be cause of gas leakage.
CAUTION
• You must purge with oxygen free nitrogen while
brazing.
Flaring Size (B)
8.7~9.1 mm
12.8~13.2 mm
16.2~16.6 mm
19.3~19.7 mm
Uneven
Cracked
Thickness
Flare nut
Connecting pipe
Torque (kgf‧cm)
140~180
350~430
500~620
690~830
Selecting the Insulation of the
Refrigerant Pipe
• According to pipes size ,Insulate pipes on gas and
liquid side by selecting appropriate insulations.
• The thickness standard is determined by the indoor
temperature of 27°C and humidity of 80%. If the units
are in extreme conditions, use thicker one.
Minimum
thickness of
insulation
Pipe size
(mm)
(mm)
PE EPDM
foam foam
Φ6.35 ~
13 10
Φ19.05
Φ22.23 mm 19 13
Refrigerant pipe before EEV kit or without EEV kit
Insulation
Gas pipe
• The pipe work can be touching but not crushing the insulation.
• When the pipes are touching, use thicker insulation.
Refrigerant pipe after EEV kit
10mm 10mm
Gas pipe
• Keep a 10mm separation of pipes after the EEV.
• In case of small gap between gas and liquid pipe, use
thicker insulation .
CAUTION
• Install the insulation not to be get wider and
use the adhesives on the connection part of it to
prevent moisture entering.
• Wind the refrigerant pipe with insulation tape if
it is exposed to outside sunlight.
• Install the refrigerant pipe respecting that the
insulation does not get thinner on the bent part
or hanger of pipe.
Remarks
If you install the pipe
underground, at the seaside,
a spa or on the lake, use thicker
one according to the pipe size.
Insulation
Liquid pipe
10mm
Liquid pipe
