4 CHain GuarD inStallation

4.1

installation of the Front Chainwheel

(without a chain guard)

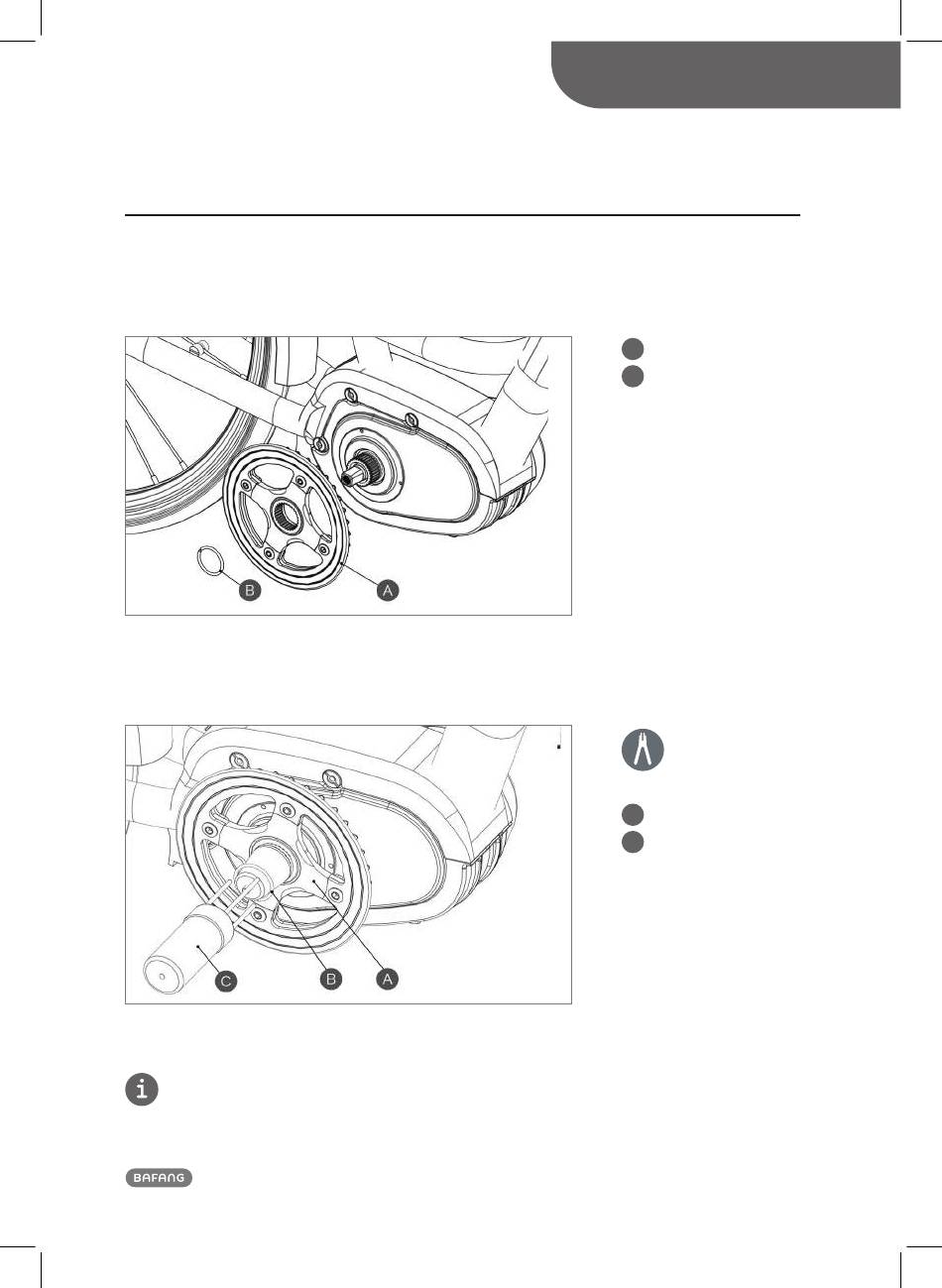

Put the front chain wheel onto the spline shaft of the drive unit.
use a special tool to fix the retaining ring onto the spline shaft.
A used retaining ring must be replaced.
DEALER MAnuAL Max Drive SySteM
CHAIn GuARD InStALLAtIon
chain wheel
A
retaining ring
b
1401010000026
retaining ring
b
a special tool used to
C
install the retaining ring
onto the hub
tool code:
GZ-MM G31-5025
