Design Guide - Standard Installation

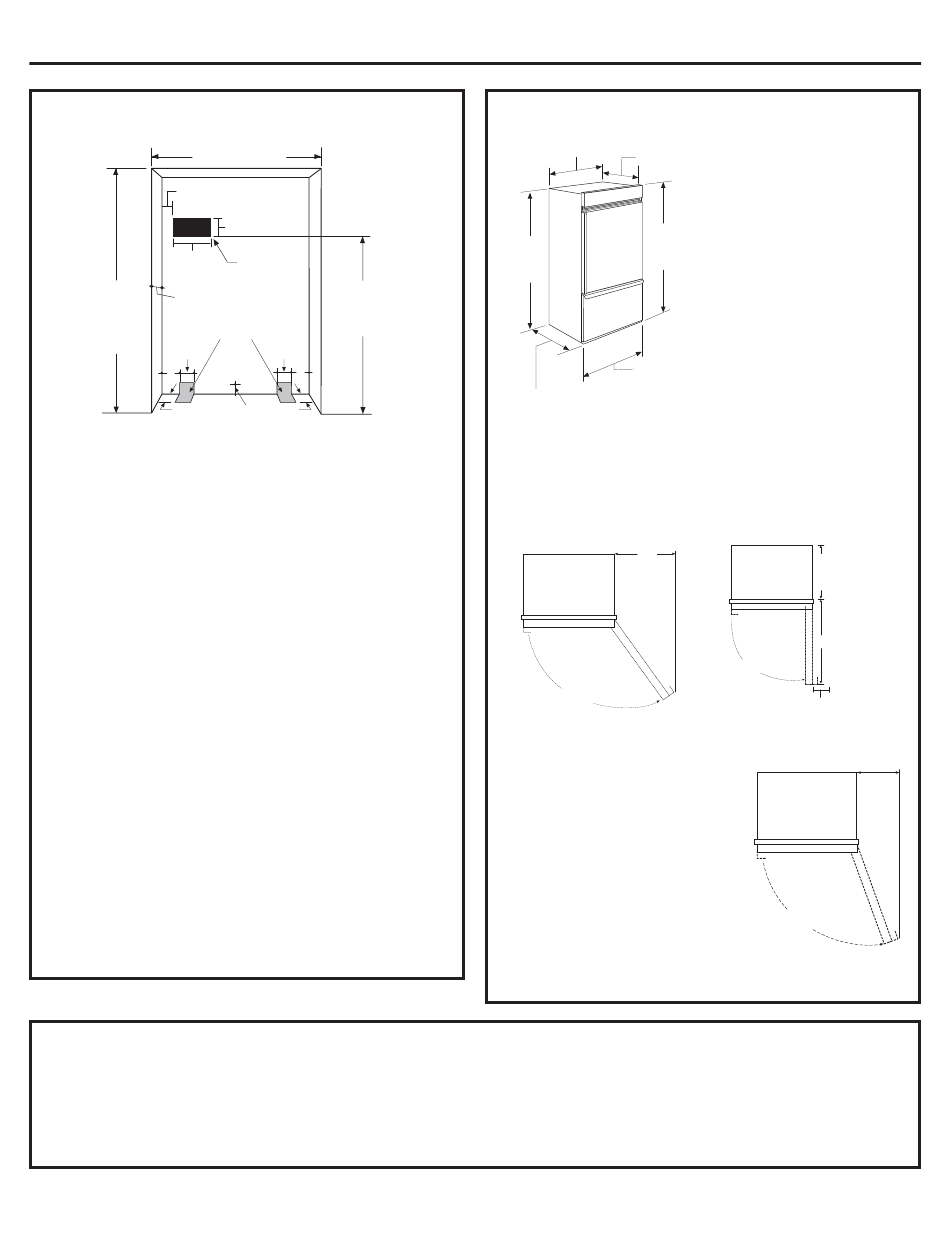

THE INSTALLATION SPACE

Finished Width
2-5/16"
10"
84-1/2" max
24" Cutout Depth
Finished
Water Supply
Opening
3-1/2"
5"
10"
Water And Electrical Locations
Electrical and water supply must be located as shown.
The Cutout Depth Must Be 24" (60.96 cm)
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Allow minimum 1/8" (0.32 cm) air gap between case
back & wall.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot
exceed the 24" (60.96 cm) installation depth shown.
The top case trim overlaps the bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be located
on rear wall as shown.
• Water line can enter the opening through the floor
or back wall. Route SmartConnect
copper tubing between the cold water line and the
water connection location. The tubing should be
long enough to extend to the front of the refrigerator.
Installation of an easily accessible shut-off valve in
the water line is required.
For Dual Installation
• If you are installing two refrigerators, side by side,
the installation space must be 71-1/2" (181.61 cm) wide.
NOTE: Additional cutout width may be required when
side panels are used. Add side panel thickness to the
finished cutout to calculate rough-in width.
31-49142 Rev. 2
35-1/2"
Wall View
6"
Electrical
Area
75" From
Floor to Bottom
of Electrical Area
3-1/2"
5"
10"
3-1/2"
kit or 1/4" O.D.
™

DIMENSIONS AND CLEARANCES

35"
25-3/8"
Case Width
Case Depth
*84" From
*83-1/2"
Floor to
at
Top Frame
Rear
36" Frame to
Frame Width
As Shipped
Depth Including
Handles 26-7/8"
Product Clearances
These refrigerators are equipped with a 3-position door
stop. The factory set 115° door swing can be adjusted
to 90° if clearance to adjacent cabinets or walls is
restricted.
25"
Minimum
to Wall
130° Door Swing
130°
Allow 25" (63.5 cm) minimum
clearance for a full 130° door
swing. Allow 15" (38.1 cm) for
pan removal.
For a 90° door swing, allow
4" min. (10.16 cm) clearance
to a wall. If the 90° door stop
position is used, pan access is
maintained, but pan removal is
restricted.
See illustration on page 11 to
determine door swing interaction
with adjacent cabinets or countertops.
• The water and electrical locations for each product
must be located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
7
* Shipping height. The
refrigerator can be
adjusted to fit into a
"
cutout that is 84-1/2
(214.63 cm) max.
height. Note that the top
case trim at the front is
"
1/2 (1.27 cm) higher
and will overlap upper
cabinetry or soffit. Use
leveling legs and wheels
for a maximum 1" (2.54
cm) height adjustment.
23-7/8"
Behind
90º Door Swing
Frame
36-3/4"
90°
4" Min. Distance to W
115° Door Swing 15" Min.
to Wall
115°
