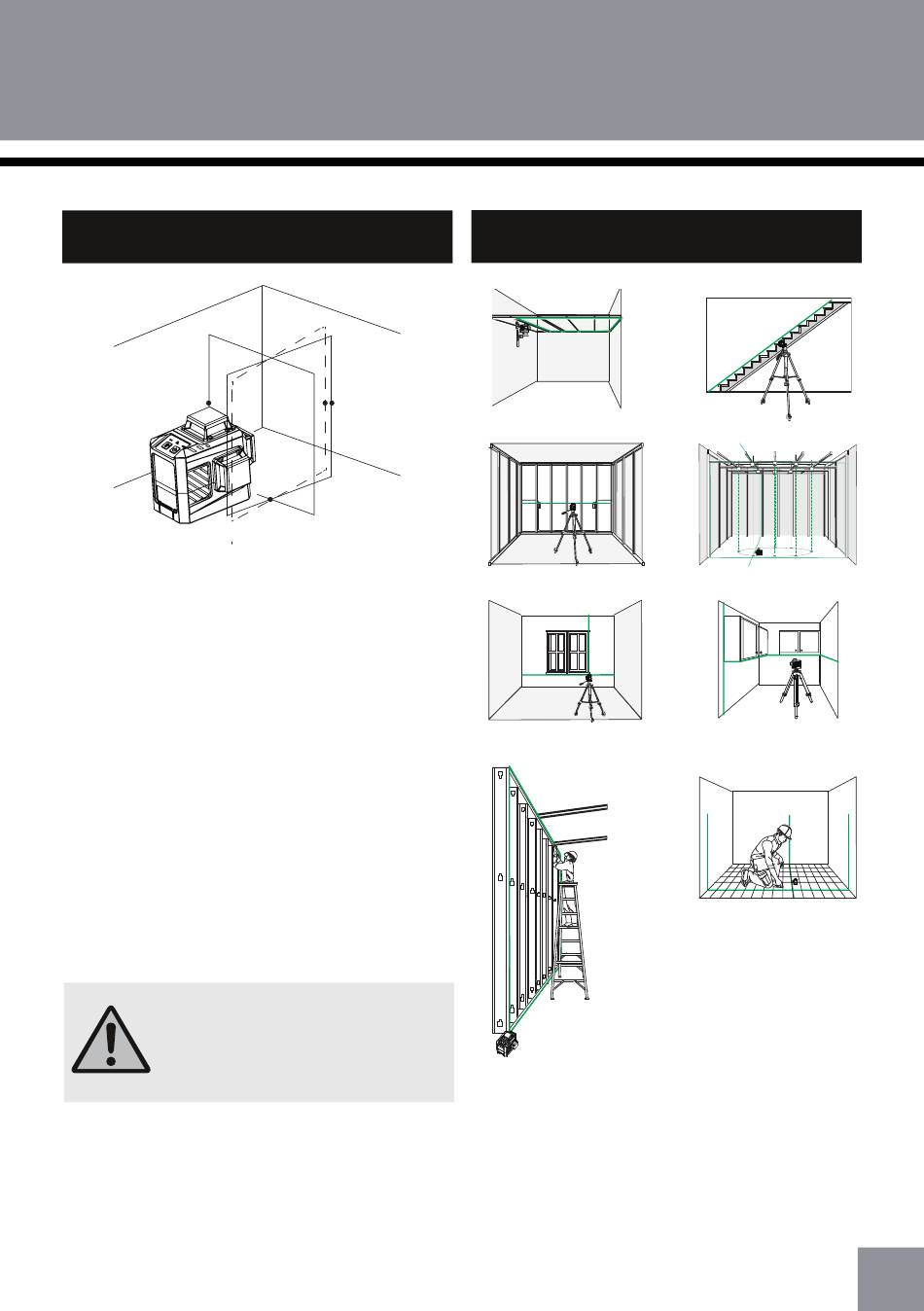

CHECKING THE 90° ANGLE
(only for CCL260G)
C
• Position the laser at 5m from two walls with a
90° angle
pressing the ON button 2 times (all lines on).
• Mark point A on the floor (at the cross of the
two vertical lines.
• Mark point B at a hieght of 1m on the wall and
mark point C at the same height on the other
wall.
Turn the laser over point A until the centre of
•
the laser line on point A is on point C
• Mark point D2 close to pint B.
If the difference between points B and D is
over 3 mm, the laser must be calibrated and
must be returned to the re-seller to be
recalibrated in an approved after-sales centre.
If the laser settings are incorrect, this
should be reported to your distributor
who will send your laser to an approved
centre to be checked.
B
D
A
APPLICATIONS
