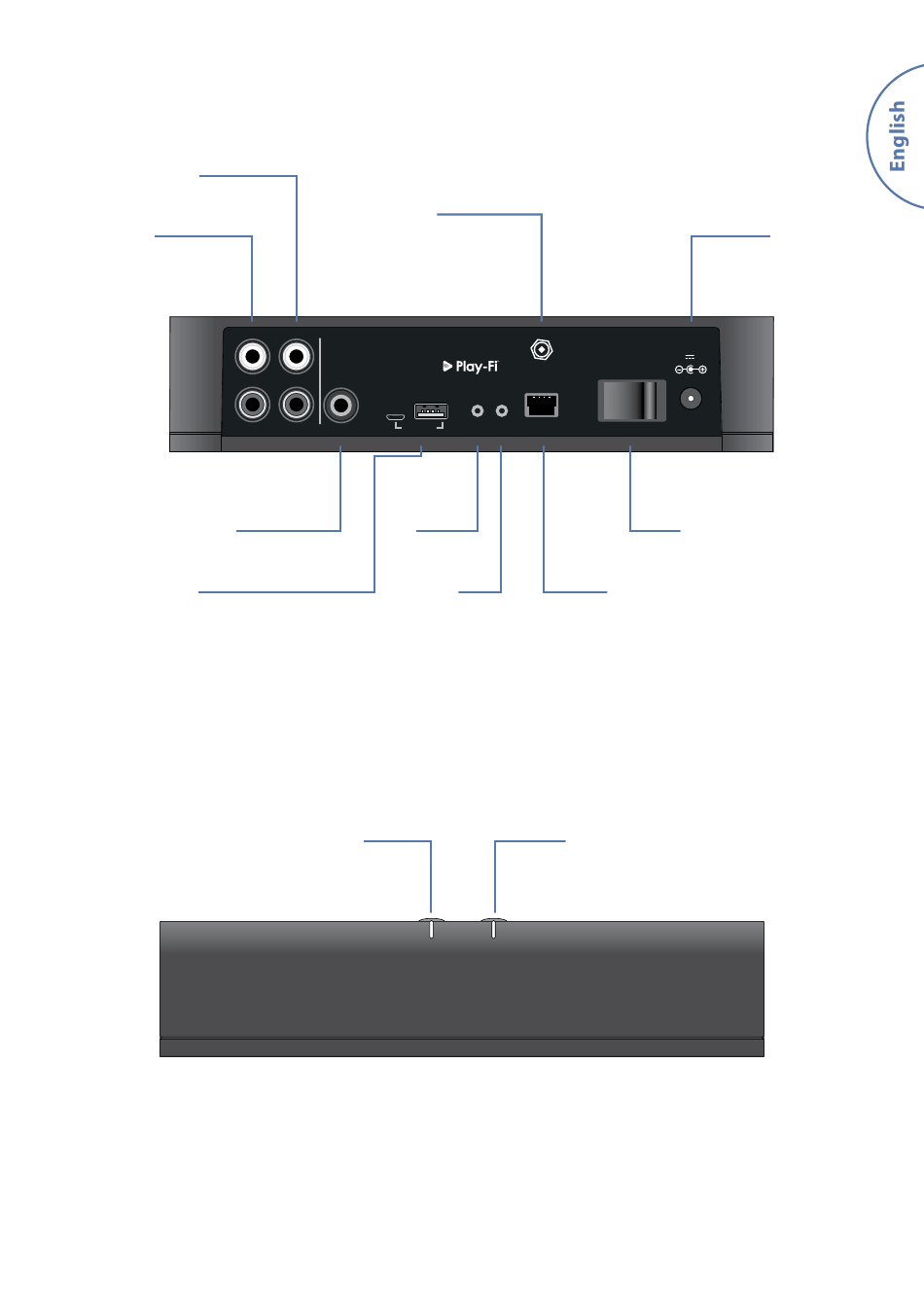

Connectors and Controls
Variable Level
Audio Output
Fixed Level
Audio Output
L
R
(Software upgrade only)
Volume Control and Mute
The variable line output volume is adjusted by pressing the volume up (+) and down (-) buttons on the top panel.
Pressing both volume buttons at the same time will cause the output to mute and the front panel STATUS LED
will change to orange.
Note: The volume control does not affect the fixed line and S/PDIF outputs of the rPlay.
LINE OUT
FIXED VARIABLE DIG.OUT
UPGRADE
Coaxial Digital
Output
USB Service Ports
Volume –
Wi-Fi Antenna
Connector
ANT
SETUP RESET NET
Wireless
Setup
Reset Ethernet
Volume +
NET STATUS
Power
Connector
12V 2.0A
POWER
1 0
Power
Switch
E-3
