Scope of Delivery

3.1 Basic Device

The heat pump contains the components listed below.
The refrigeration circuit is "hermetically sealed" and contains
the fluorinated refrigerant R410A included in the Kyoto proto-
col. Information on the GWP value and CO
refrigerant can be found in the chapter Device information. The
refrigerant is CFC-free, non-ozone depleting and non-combus-
tible.
1
6
7
4

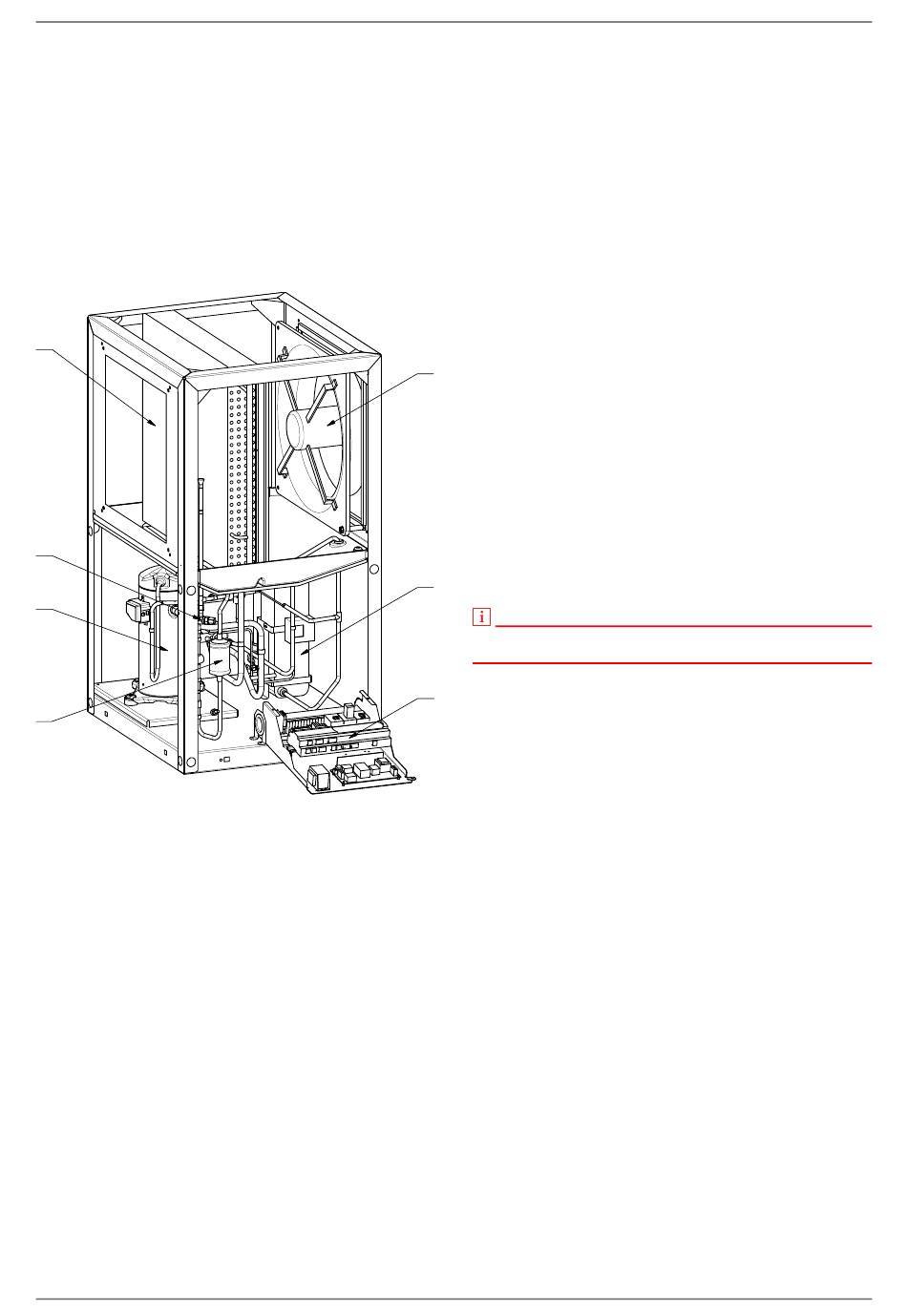

1) Evaporator
2) Ventilator
3)

Switch box

4) Filter dryer
5) Liquifier
6) Expansion valve
7) Compressor
EN-4
3.2 Switch Box
The switch box is located in the heat pump. It can be swung out
after removing the lower front cover and loosening the fasten-
ing screw located in the upper right-hand corner.
The switch box contains the supply connection terminals, as
well the power contactors, the soft starter unit and the heat
pump manager.
equivalent of the
2 The heat pump manager is a convenient electronic regulation
and control device. It controls and monitors the entire heating
system on the basis of the external temperature, including hot
water preparation and safety systems.
The customer must install the external temperature sensor,
which is included in the scope of supply of the haet pump man-
ager together with the necessary fixing accessories.
The enclosed operating instructions describe the function and
2
use of the heat pump manager.
4

4.1 Remote control

A remote control adds convenience and is available as a special
accessory. Operation and menu navigation are identical to
those of the heat pump manager. Connection takes place via an
interface (special accessories) with RJ 12 Western plug.
5
In the case of heating controllers with a removable operating
element, this can also be used directly as a remote control.
4.2 Building management
3
The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant
interface plug-in card. The supplementary installation instruc-
tions of the interface card must be consulted regarding the
exact connection and parameterisation of the interface.
The following network connections can be made on the heat
pump manager:



452161.66.21 · FD 9912

Accessories

NOTE
technology
Modbus
EIB, KNX
Ethernet
LI 11TES - LI 16TES
