Final Installation - Acksys WL-ABOARD Serie Guide D'installation Rapide

5. Device configuration

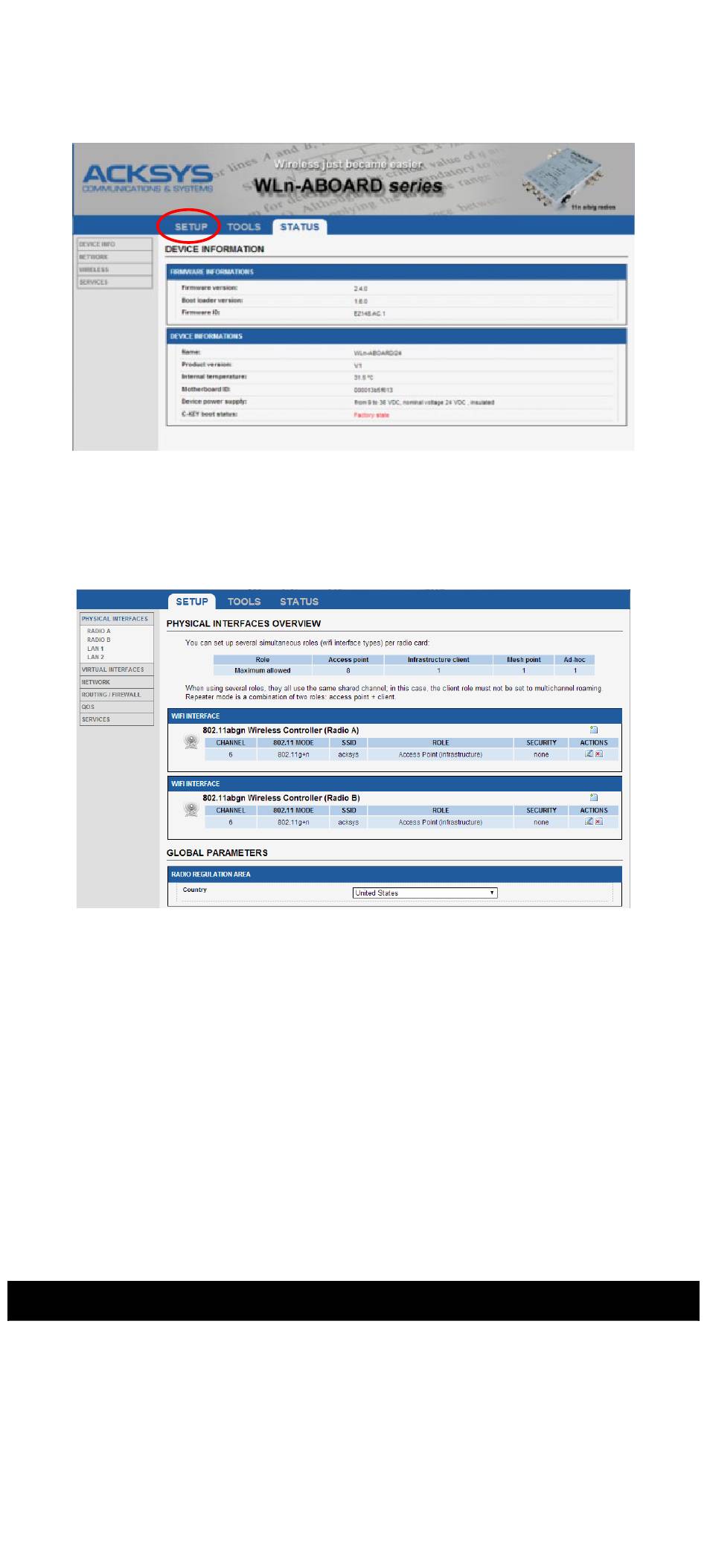

Click on the « Web » button to access the built-in web-based interface using
your web browser. The default page displays the device status. Now select
the "SETUP" tab.
You will be asked for a username and a password. You must choose the root
user. No password is required by default. You get access to the setup pages.
On the "wireless overview" page you should first select your country in order
to enforce applicable regulation rules. The country selector is located in the
global parameters, near the bottom of the page.
You can select any radio interface to set up its Wi-Fi parameters (alternatively
you can navigate to change network and services configuration). Set the
following essential parameters:
The operating mode: Access point, client (bridge), mesh
o
Wi-Fi parameters: 802.11 mode, radio channel (take care about
o
legislation), SSID
Wi-Fi security parameters (WEP, WPA, WPA-PSK, WPA2, WPA2-
o
PSK, SSID broadcast or not)
You will find a complete description of all modes in the reference manual for
the "WLn" line of products.
Upon delivery, the default factory settings are:
Both radios disabled, each one with a preset access point interface
o
SSID : "acksys" (broadcast)
o
No security (no WEP, no WPA, no WPA2, no MAC filter)
o
802.11n/802.11g mode on the 2.4 GHz band, channel 6, 20 MHz wide
o
6. Install the device
Place the device in an appropriate place. The device can be installed outside.
7. Install the antennas
Insure that their position and radiation pattern allow proper communication
with the peer Wi-Fi devices.

Specifically, insure that there are no obstacles between the
device and its peers ("line of sight" concept).

FINAL INSTALLATION

-3-
