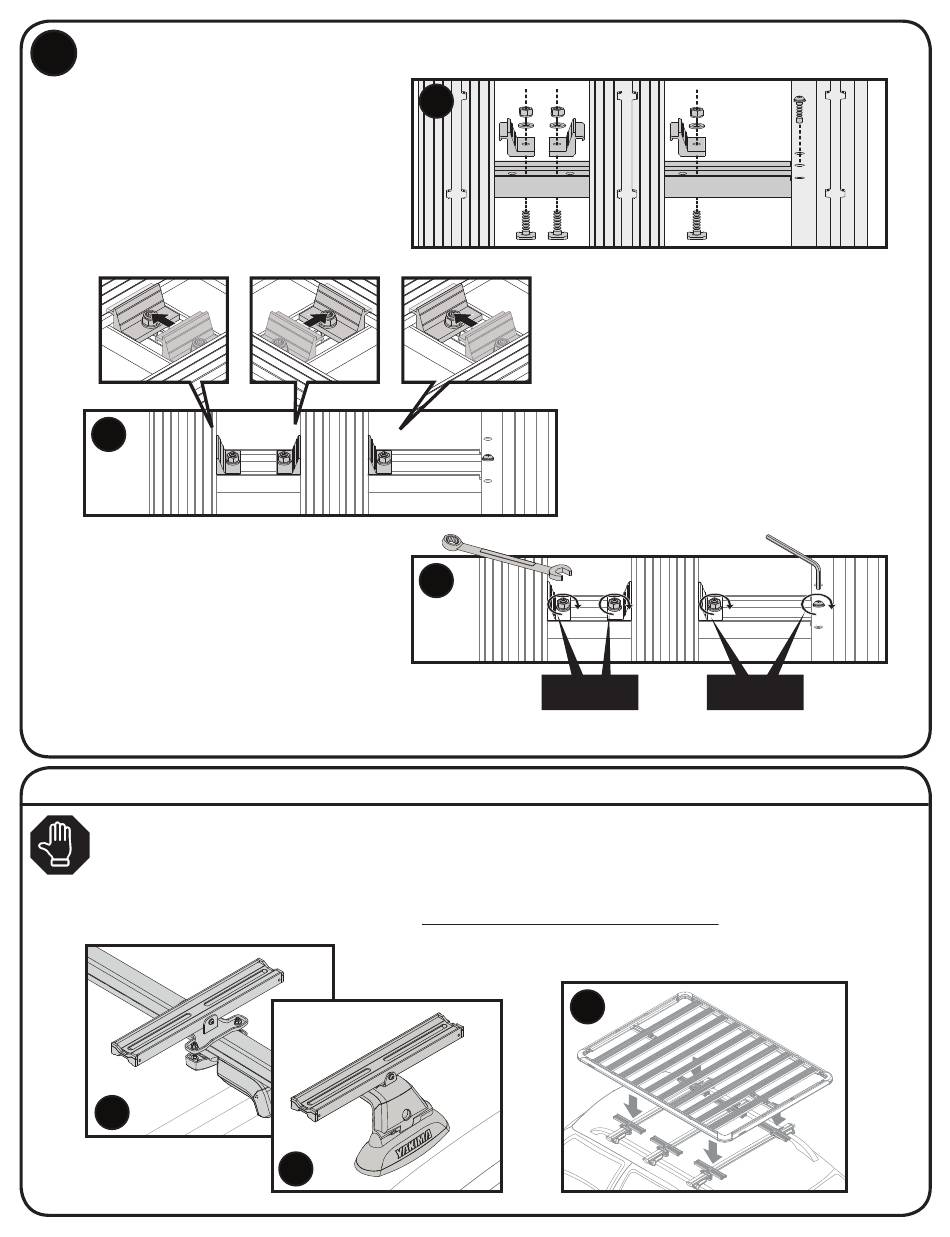

SECURE THE PLATFORM SUPPORTS.
A. Thread three M8 x 25 T-bolts up
through the Platform support and
through three slat clamps. Install
three M8 washers and lock nuts
on the M8 tee bolts and install a
M6 x 25 mm capscrew with washer
as shown. Do not fully tighten.
B
C. Being sure the M8 T-bolt is captured
in the slot beneath the platform
support use a 13 mm wrench to fully
tighten the nuts to 7 Nm. Then use a
hex or torque wrench to tighten the
capscrew to 7 Nm.
D. Repeat for the platform support at the other end of the platform.
A. NEXT Install the mounting blocks to your vehicle. Follow the instructions from either SL Adapters
or Crossbar Clamps, and reference the Platform Fit Guide on page 2.
B. THEN place the platform on the roof after the mounting block assemblies are installed to your
vehicle according to the guidelines. Follow platform installation on page 6.
A
Instruction #1035998F - Page 5 of 14
A
C
MOUNTING • MISE EN PLACE • MONTAJE
A
B. Slide each slat clamps so that
it engages in the side channels
of the slats as shown.
7 Nm 7 Nm
B
2X
