Speedaire Operating Instructions Manual
models 41H528 thru 41H533
Electrical Installation
Diagrams
models 41H528 / 41H531
Brn / Pin 1
Supply
Blu / Pin 3
5-120V AC/DC
Load
models 41H529 / 41H532
Brn / Pin 1
Blu / Pin 3
Supply
Blk / Pin 4
5-28 VDC
Load
PNP
models 41H530 / 41H533
Blu / Pin 3
Brn / Pin 1
Supply
Blk / Pin 4
5-28 VDC
Load
NPN
4
4
3
1 1
Female Male
Connector
Connector

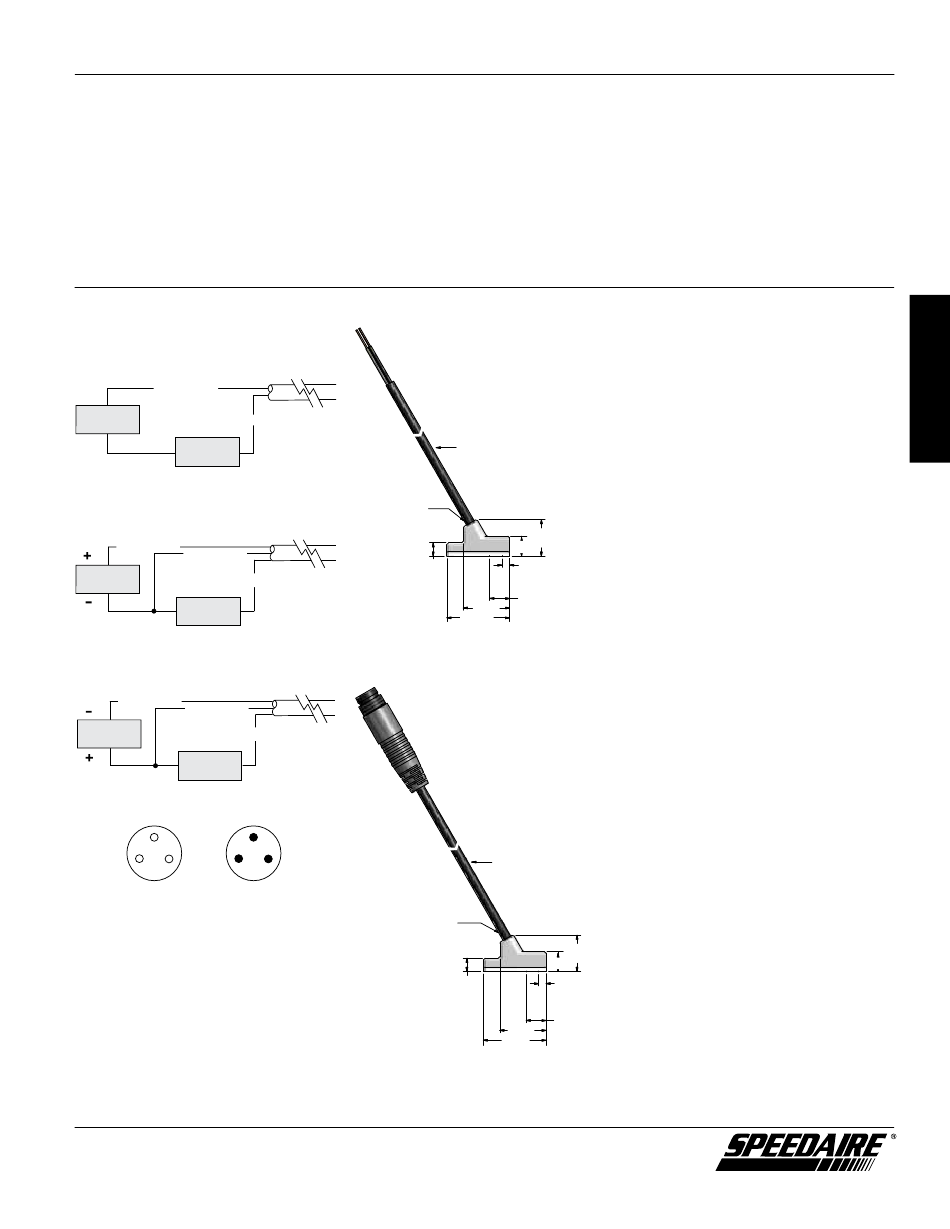

Figure 10 – Electrical Installation

Dimensions (in mm)

models 41H528, 41H529, 41H530
9' Wire
Ø 2.6
4.0
19.0
Figure 11 – 9' Wire Version
models 41H531, 41H532, 41H533
3
Ø 2.6
4.0
Figure 12 – 8 mm Connector Version
11.0
6.0
2.3 To Center of Sensing
Area for Electronic Style
6.0 To Center of Sensing
14.0
Area for Reed Style
6" Wire
11.0
6.0
2.3 To Center of Sensing
Area for Electronic Style
6.0 To Center of Sensing
14.0
Area for Reed Style
19.0
3
