Unit connectors
Network connector - RJ45 Ethernet connector. Supports Power over Ethernet (PoE) Class 3 - max
12.95W. Using shielded cables is recommended.

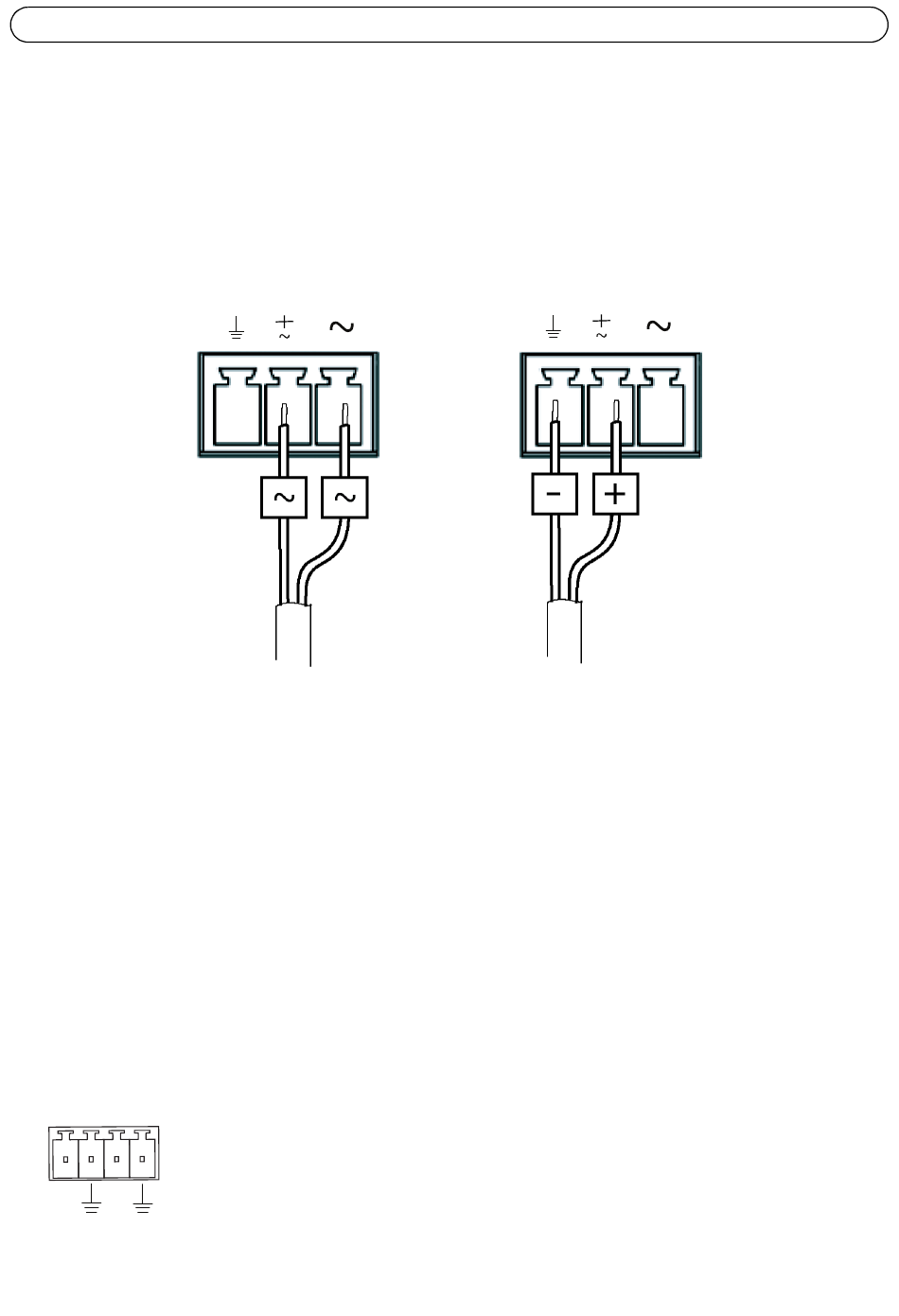

Power input connector - 3-pin terminal block used for power input from an external power
supply.
AC power input 20-24 V AC, max 14 VA
External power supply: An external 8-28 V DC or 20-24 V AC limited power source with a maximum
output power of 100 VA.
Note:
Ensure the power supply is appropriate in relation to the temperature and vibrations in its
environment.
Connect the wires according to the symbols on the terminal block and the description in the image
above.
Audio in/out -
• Audio Input: Microphone or line level inputs (mono). 3 V microphone bias is available.
• Audio Output: Line level audio output (mono), that can be connected to a public
address (PA) system or an active speaker with a built-in amplifier.
IN
OUT
Power connector - 3-pin terminal block used for power input
AXIS Q7424-R Mk II Installation Guide
DC power input 8-28 V DC, max 10 W
