Arcam rPhono Guide De Démarrage Rapide page 10

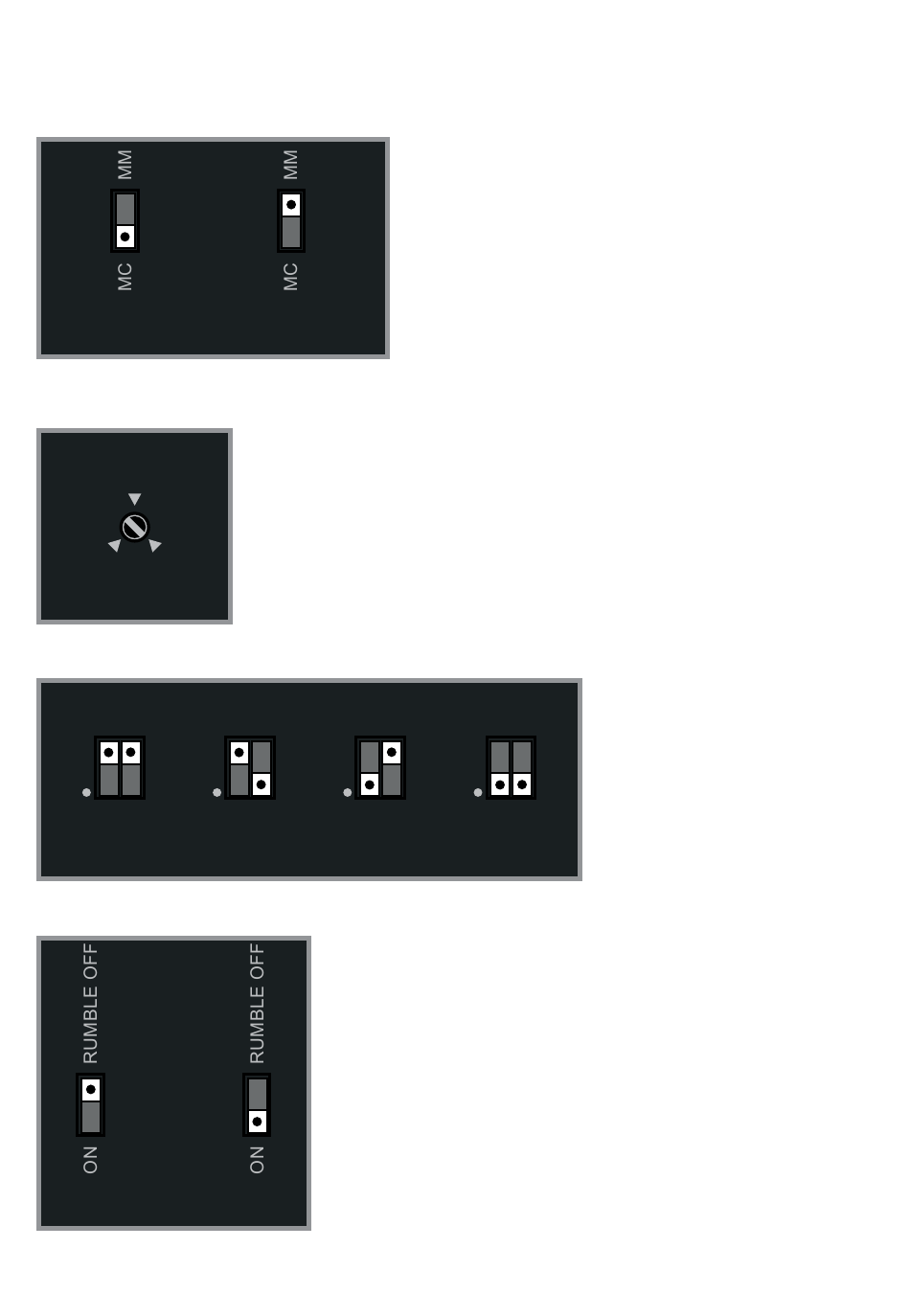

Cartridge type selector
MOVING
COIL
Input loading resistance (MC only)
300Ω
175Ω 425Ω
50Ω 550Ω
Input loading capacitance
120pF
Rumble filter
DISABLED
E-6
MOVING
MAGNET
The MC input resistive loading can be adjusted between 50 and 550Ω to best match
the specifications of your cartridge.
NOTE: The left and right channel should be adjusted to the same value.
220pF 340pF
This filter eliminates very low frequency "rumble", typically caused by
record imperfections (e.g. pressing irregularities or warped records), which
can affect the rPhono performance.
ENABLED
The rPhono features separate inputs for either a moving coil
(MC) or a moving magnet (MM) cartridge. Depending on your
type of cartridge, connect the turntable output to either the
MC or MM input of the rPhono and make sure that the rPhono
input is correctly selected using the MM/MC switch.
If required, connect the separate ground of your turntable to
the ground terminal of the rPhono, as shown on page E-4.
440pF
The input loading capacitance can be
set to 120, 220, 340 or 440pF to best
match the specifications of your
cartridge.
NOTE: The left and right channel
should be adjusted to the same value.
