Clearances - Empire Comfort Systems OLL60FP12S-1 Instructions D'installation Et Mode D'emploi

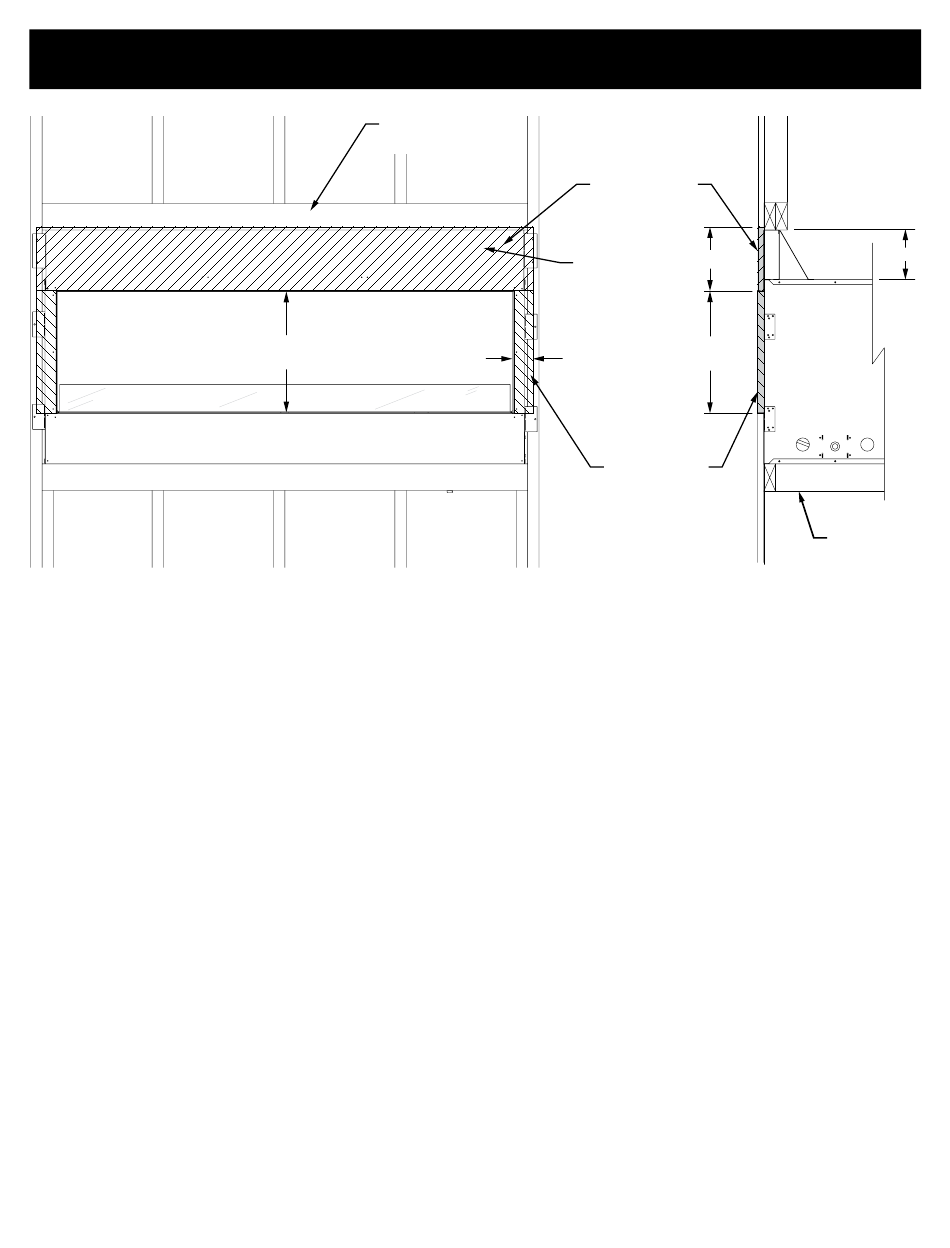

Front and Side View of Non-Combustible Panel to Opening on Fireplace's Face
*Note: 8-in. minimum of non-combustible material is required above the fireplace opening. 16-in. of non-combustible material is
provided to allow for placement of wall joint in a cooler temperature zone.
35008-3-1015

CLEARANCES

Framing
Header
Fireplace
Opening
Non-Combustible
Panels installed
over Appliance Opening
Fireplace Nailing
Header
2 1/4"
Non-Combustible
BOTH SIDES
*
NON-COMBUSTIBLE
WALL BOARD PROVIDED
Figure 4
*
8"
Fireplace
Opening
Side Panel
6 1/2"
Support
Framing
Page 9
