Theory Of Operation; Propane Supply; Installation - Desa RLP30A Manuel D'utilisation

The hose/regulator assem-
The Fuel System:
bly attaches to the propane gas supply. This
provides fuel to the heater.
The motor turns the fan. The
The Air System:
fan pushes air into and around the combus-
tion chamber. This air is heated and provides
a stream of clean, hot air.
Clean Heated
Air Out (Front)

PrOPaNe SuPPLy

Propane gas and propane tank(s) are to be
furnished by the user.
Use this heater only with a propane vapor
withdrawal supply system. See Chapter 5
of the Standard for Storage and Handling
of Liquefied Petroleum Gas, ANSI/NFPA 58
and/or CAN/CGA B149.2. Your local library or
fire department will have this booklet.
The amount of propane gas ready for use
from propane tanks varies. Two factors decide
this amount:
1. The amount of propane gas in tank(s)
2. The temperature of tank(s)
This heater is designed to operate with a
minimum 20 lb (9 kg) propane tank. You may
need two or more tanks or one larger tank in
colder weather. It is recommended you use a
100 lb (45 kg) tank for longer operation. See
chart below. Less gas is vaporized at lower
temperatures. Your local propane gas dealer
will help you select the proper supply system.
The minimum surrounding air temperature
rating for each heater is 0° F (-18° C).
Average Temp
At Tank Location
Above 0° F (-18° C)
Below 0° F (-18° C)
4

tHeOry OF OPeratION

Combustion
Chamber
Air For Combustion

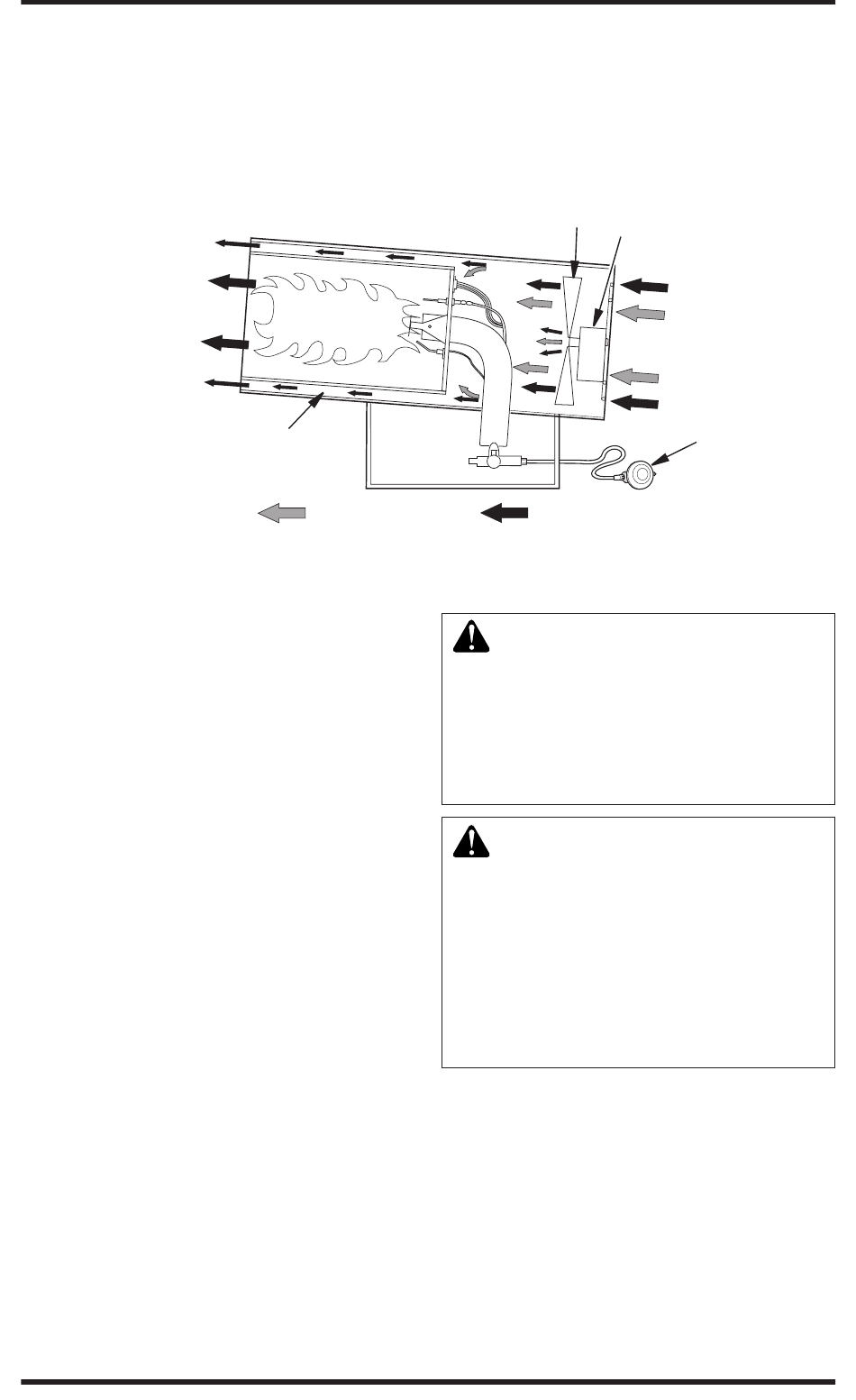

Figure 2 - Cross Section Operational View
No. Of Tanks
100 lb (45 kg)
1
2
www.desatech.com
The Ignition System:
the burner.
The Automatic Control System:
causes the heater to shut down if the flame
goes out.
Fan
Air For Heating

INStaLLatION

WARNING: Review and un-
derstand the warnings in the
Safety Information section, page
2. They are needed to safely op-
erate this heater. Follow all local
codes when using this heater.
WARNING: Test all gas piping
and connections for leaks after
installation or servicing. Never
use an open flame to check for
a leak. Apply a mixture of liquid
soap and water to all joints.
Bubbles forming show a leak.
Correct all leaks at once.
1. Provide propane supply system (see
Propane Supply).
2. Connect POL fitting on hose/regulator
assembly to propane tank(s). Turn POL
fitting counterclockwise into threads on
tank. Tighten firmly using wrench. IM-
PORTANT: Position regulator so that hose
leaving the regulator is in a horizontal po-
sition (see Figure 3, page 5). This places
the regulator vent in the proper position
to protect it from the weather.
The piezo ignitor lights
This system
Motor
Cool
Air In
(Back)
Hose/Regulator
Assembly
113855-01D
