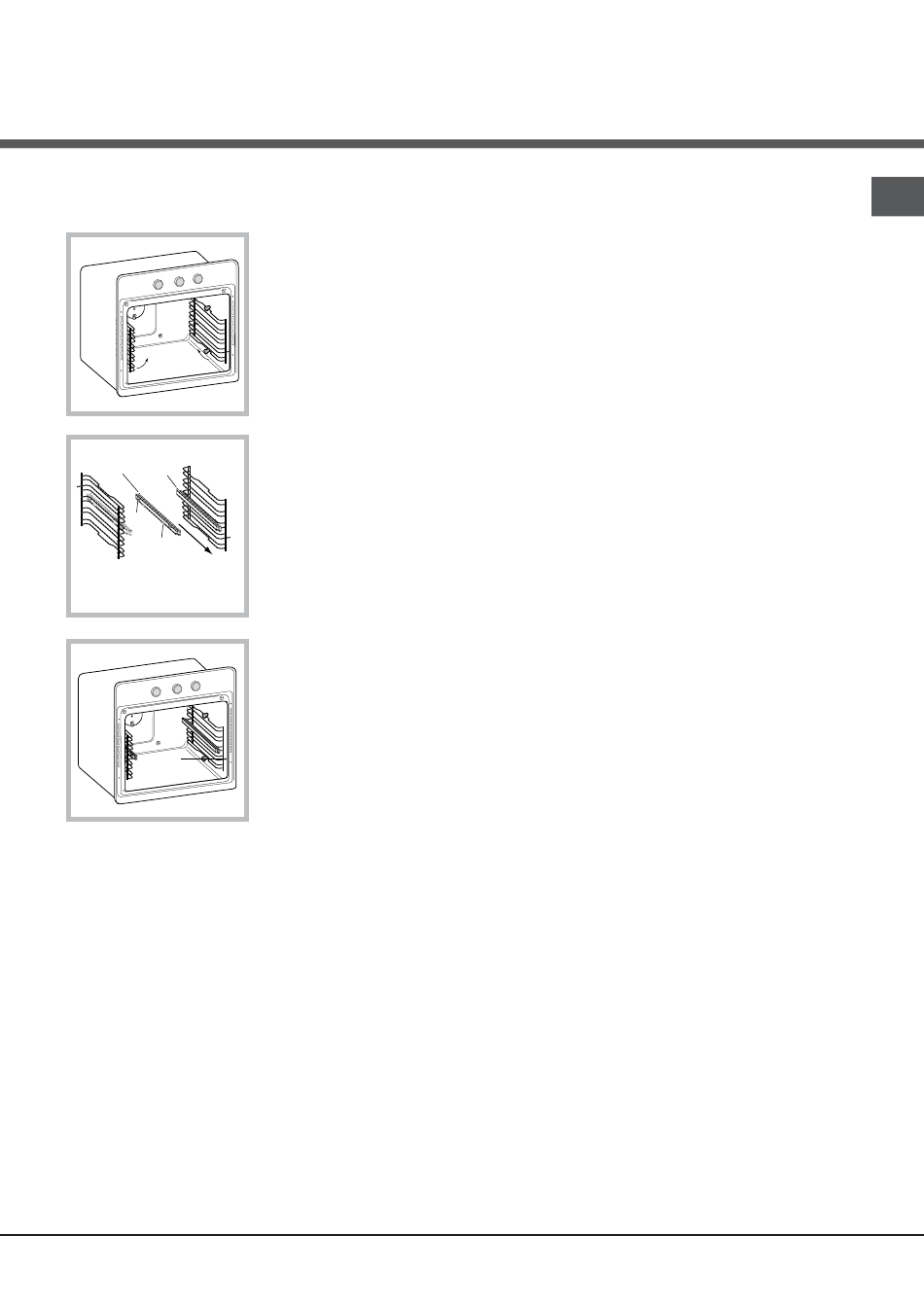

Assembling the sliding rack kit

To assemble the sliding racks:
❆
▲ ✁ ✂
❘ ☎ ❣ ✠ ✂ ❣ ✄ ☎ ✆
❣ ✄ ☎ ✆ ✝ ✞ ☎ ✟
✝ ✞ ☎ ✟
❇
✡ ☛
❈
☞ ✌
✏ ♦
✍ ✎
✌ ✒
☛ ✏ ✑
✎ ☞ ✓
✍ ✎
☛ ✏ ✑
❉
4. Finally, fit the frames on the spacers A.
! Do not place the sliding racks in position 5.
1. Remove the two
frames, lifting them
away from the spacers
A ( see figure ).
2. Choose which shelf
to use with the sliding
rack. Paying attention
to the direction in which
the sliding rack is to be
extracted, position joint
B and then joint C on
the frame.
3. Secure the two
frames with the guide
rails using the holes
provided on the oven
walls ( see diagram ).
The holes for the left
frame are situated at
the top, while the holes
for the right frame are
at the bottom.
