EN

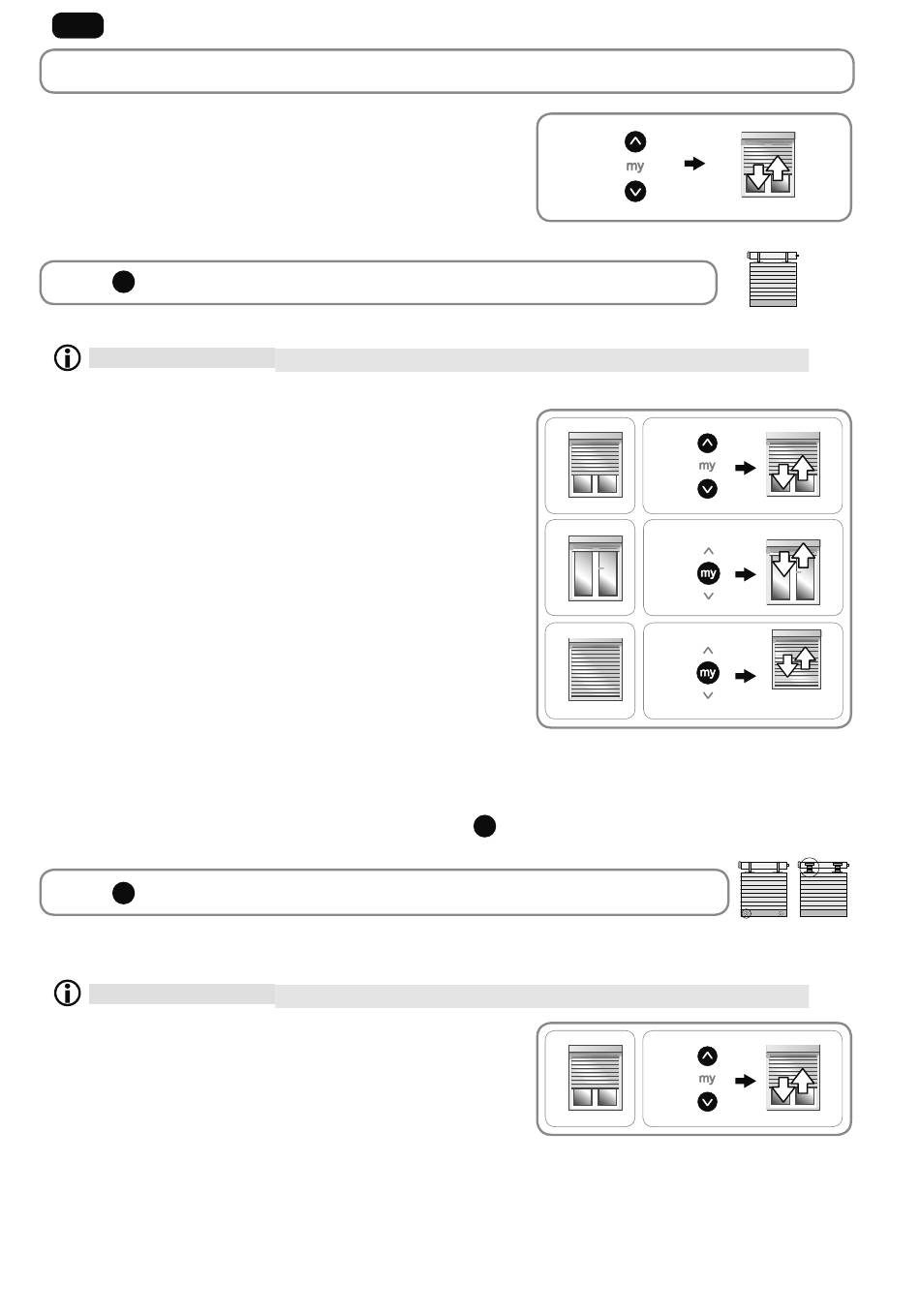

Step 1: Preprogramming the Somfy io-homecontrol
Turn the power supply back on.
-
Λ V
Press both and
-
The roller shutter moves back and forth: this control
→
point is now preprogrammed in the drive.
The drive is in programming mode for ≈ 10 min.
a
Step 2 : Setting / resetting of end limits in manual mode
This procedure is only applicable to roller shutters without rigid links and without stops.
From 3), in set mode, the roller shutter moves more slowly during the first few seconds.
Position the roller shutter at its half-way position.
1)
Simultaneously press
2)
is back and forth movement by the roller shutter.
The drive is in set mode.
→
The drive remains in set mode for ≈ 10 min.
Move the roller shutter to the desired upper (or lower)
3)
end limit.
my,
Press for ≈ 2 s, until there is back and forth
4)
movement by the roller shutter.
The setting for the first end limit is confirmed.
→
Move the roller shutter to the desired lower (or upper)
5)
end limit.
my
Press , for ≈ 2 s, until there are two back and
6)
forth movements by the roller shutter.
The setting for the second end limit is confirmed.
→
The settings for the end limits are programmed.
→
The drive enters programming mode for ≈ 10 min. if no control point is programmed.
→
The procedure for modifying the end limit settings is identical to the initial setting procedure.
To modify the settings at a later time, repeat step 2
b
Step 2 : Setting / resetting of end limits in semi-automatic mode
This procedure is only applicable to roller shutters without rigid links and with stops, and roller
shutters with rigid links and without stops.
From 3), in set mode, the roller shutter moves more slowly during the first few seconds.
Position the roller shutter at its half-way position.
1)
Simultaneously press
2)
is back and forth movement by the roller shutter.
The drive is in set mode.
→
The drive remains in set mode for ≈ 10 min.
30
Copyright © 2014 - 2016 Somfy SAS. All rights reserved.
briefly and at the same time:
Λ V,
for ≈ 5 s, until there
and
Λ V,
for ≈ 5 s, until there
and
local control point
®
0.5 S
1) 2)
3) 4)
5) 6)
a
.
1) 2)
5 S
2 S
2 S
X 2
5 S
