ASSEMBLY INSTRUCTIONS

IMPORTANT: ASSEMBLE ON FLAT AND SOFT SURFACE TO AVOID SCRATCHING.

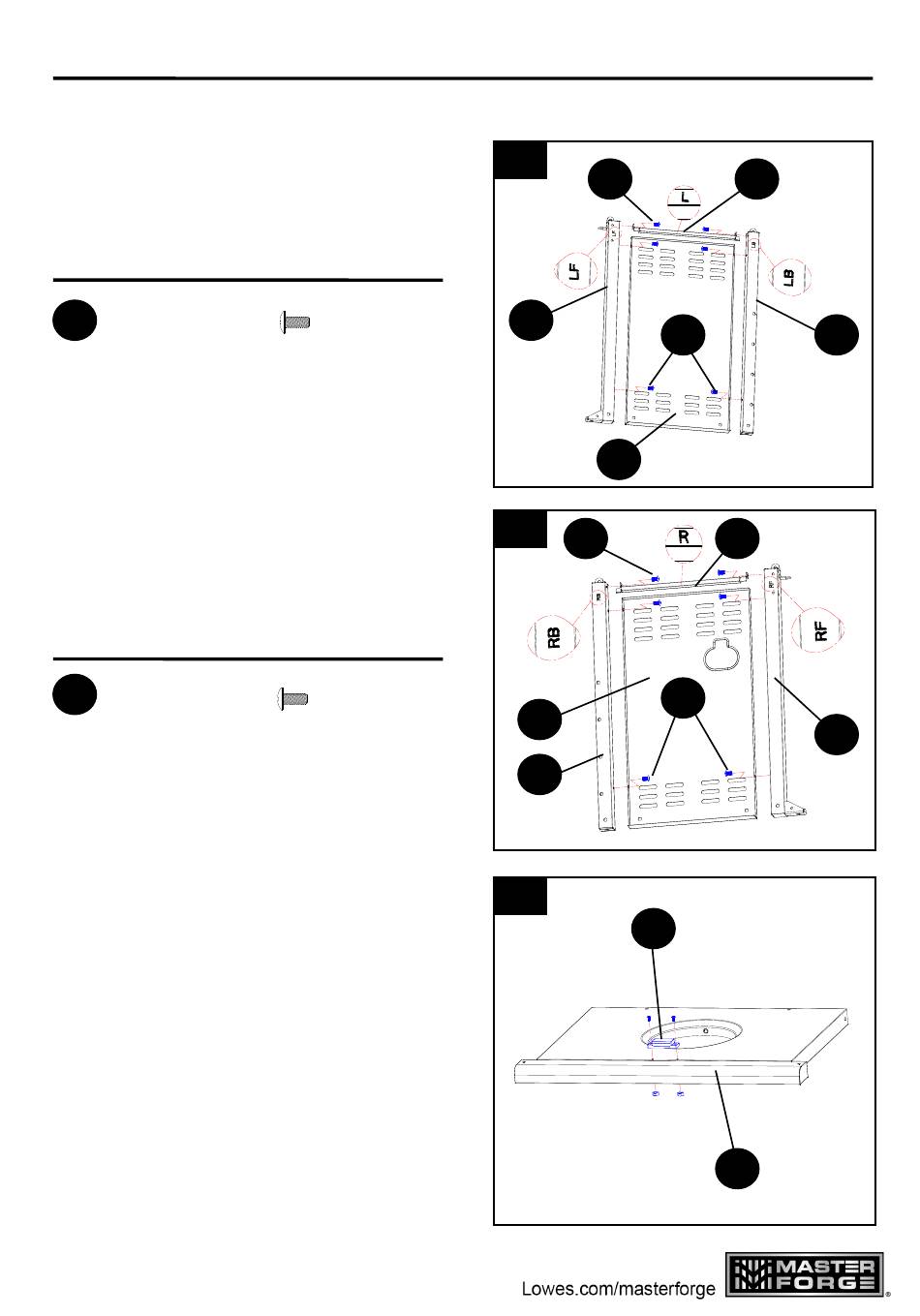

1. Attach left front leg assembly (N), left rear
leg assembly (L) and left drip tray rail (O) to
cart left panel (M) as shown using M4 x 8 mm
screws (AA).
Hardware Used
AA M4X8mm Screw
AA
M4 x 8 mm Screw
2. Attach right back leg assembly (V), right
front leg assembly (Y) and right drip tray rail
(T) to cart right panel (X) as shown using M4 x
8 mm screws (AA).
Hardware Used
AA M4X8mm Screw
AA
M4 x 8 mm Screw
3. Remove screws and nuts preassembled to
magnet (Q), then attach magnet (Q) to bottom
panel (R) as shown using the previously
removed hardware.
X 6
x 6
X 6
x 6
