EN
3
4
1. Drainage
2. Plate heat exchanger
3. Supply air filter
4. Supply fan
5.Exhaust air filter
6. Exhaust fan
7. Electric air heater
8. Automation control system
9. By-pass damper
W* – Ducted DH water heater.
Note: to reduce the noise level to the premises, it is recommended to install sound attenuators in the ducts.
14

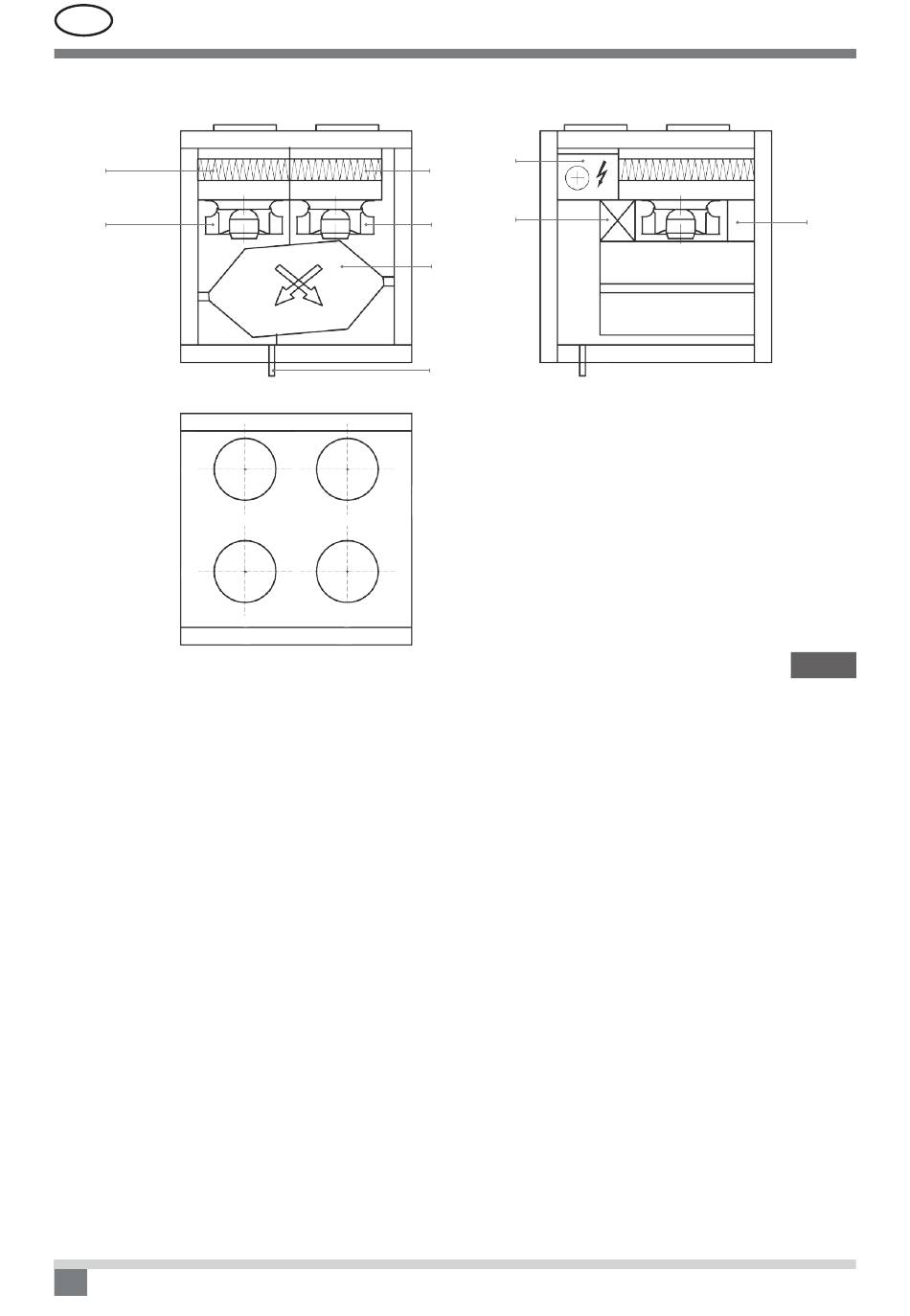

DOMEKT RECU 400VE(W)CF-EC Air Handling Unit Scheme
D B
C
A
7
5
9
6
2
1
A. Outdoor intake
B. Supply air
C. Extract indoor
D. Exhaust air
UAB AMALVA we reserve the right to make changes without prior notice
8
3 Picture
