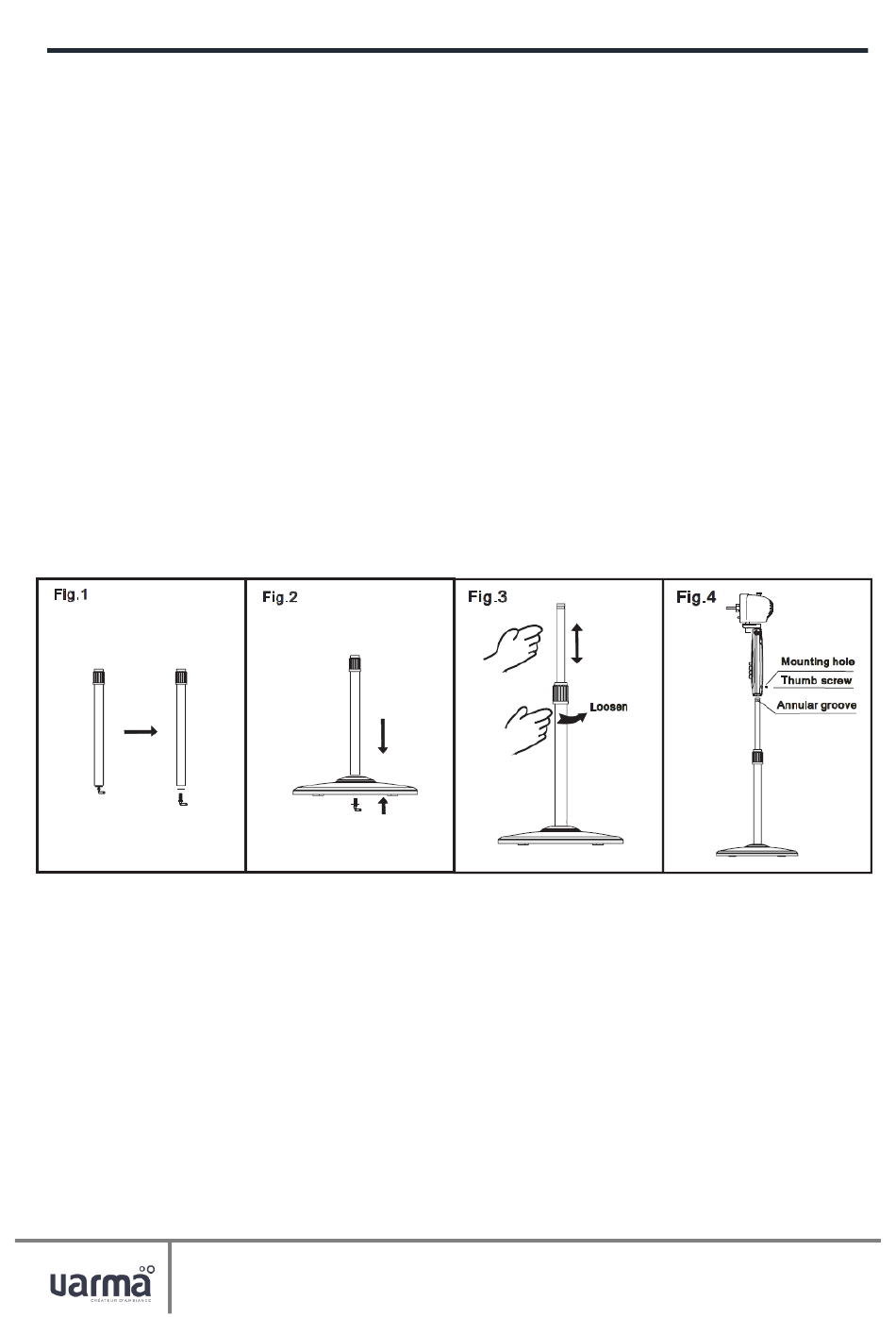

Assembly of cross stand & column unit
1. Loosen the butterfly screw and washer from the standing pole. Connect the
standing pole with the crossbase connector and fasten the butterfly screw with
the washer.
2. Attach 4 stands and slide into the crossbase connector. Ensure the stands are
well fixed into the connector.
3. Loosen the height adjustment ring, lift the internal pole to the max height. You
may adjust the extension tube to the desire height and then fasten the height
adjustment ring.
4.
The height adjustment ring must be fully tightened before assembling the motor
housing to the extension tube. Unscrew the thumbscrew, then fit the Motor
housing to the extension tube and tighten the thumbscrew in alignment with the
groove on the extension tube. The thumbscrew must be fully tightened before
the fan is operated.
Grill & fan blade assembly
1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the
plastic nut counterclockwise to remove both of them. Fix the rear grill to the
motor then tighten the plastic nut again.
2. Insert the blade into shaft, and make sure the rotor shaft pin is fitted into groove
of the blade. Turn the spinner counterclockwise to tighten the blade.
3. Fasten the front grill and the rear grill by the grill clip and then tighten the fan
grill locking screw and nut.
