Mounting
6.2 Mounting the measuring instrument
A 1 Drill a hole (Ø 5 mm) into the wall using a
drill, insert the enclosed dowel and screw
in the screw.
2 Fit the measuring instrument.
DTA 10
1. Mount the measuring instrument to the wall.

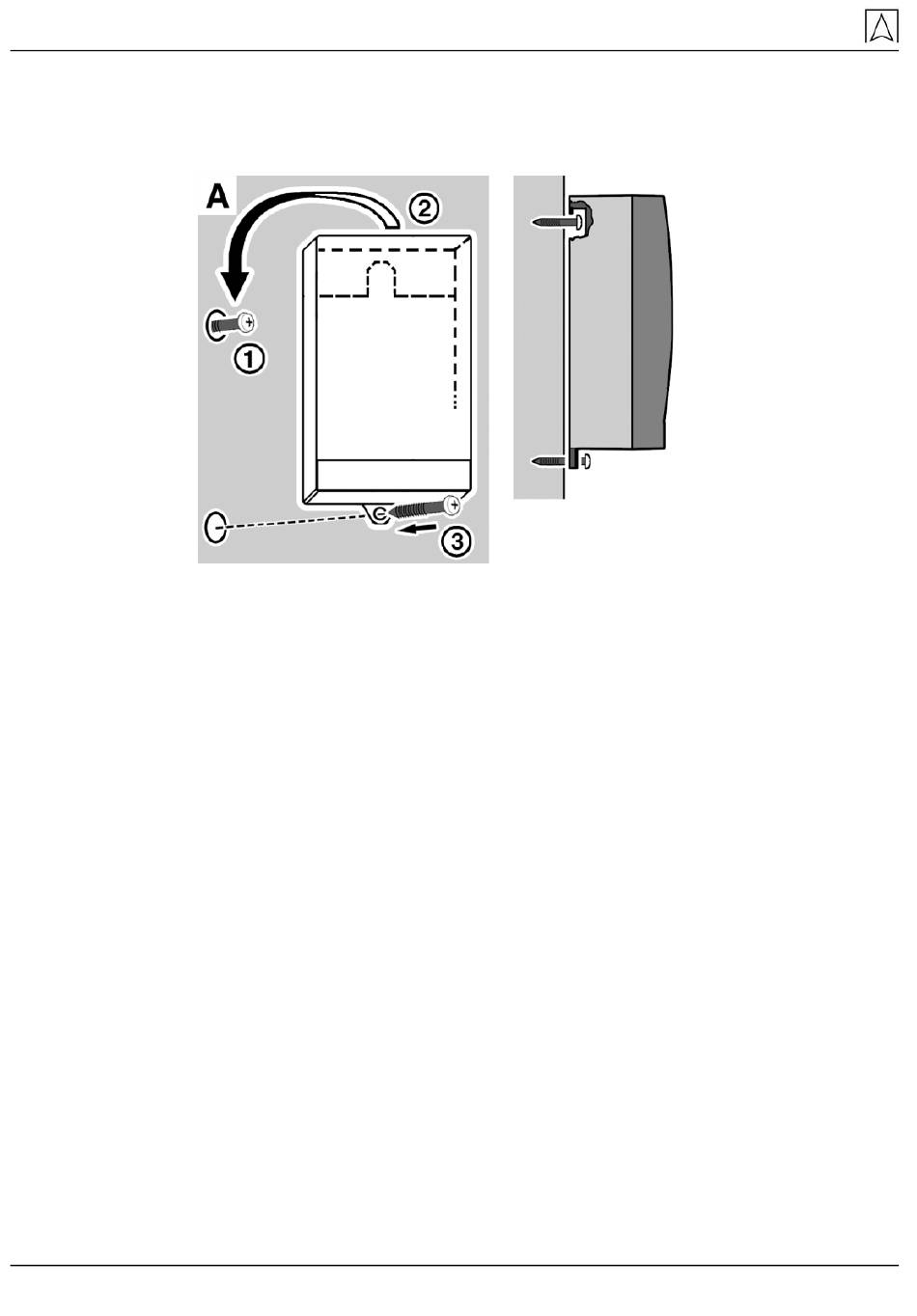

Fig. 12: Mounting the measuring instrument to the wall
– English –
3 Mark a drilling hole at the posi-
tion of the bottom lug, drill the
hole (Ø 5 mm) with a drill and
insert the enclosed dowel. Fas-
ten the measuring instrument by
screwing the bottom lug to the
wall.
