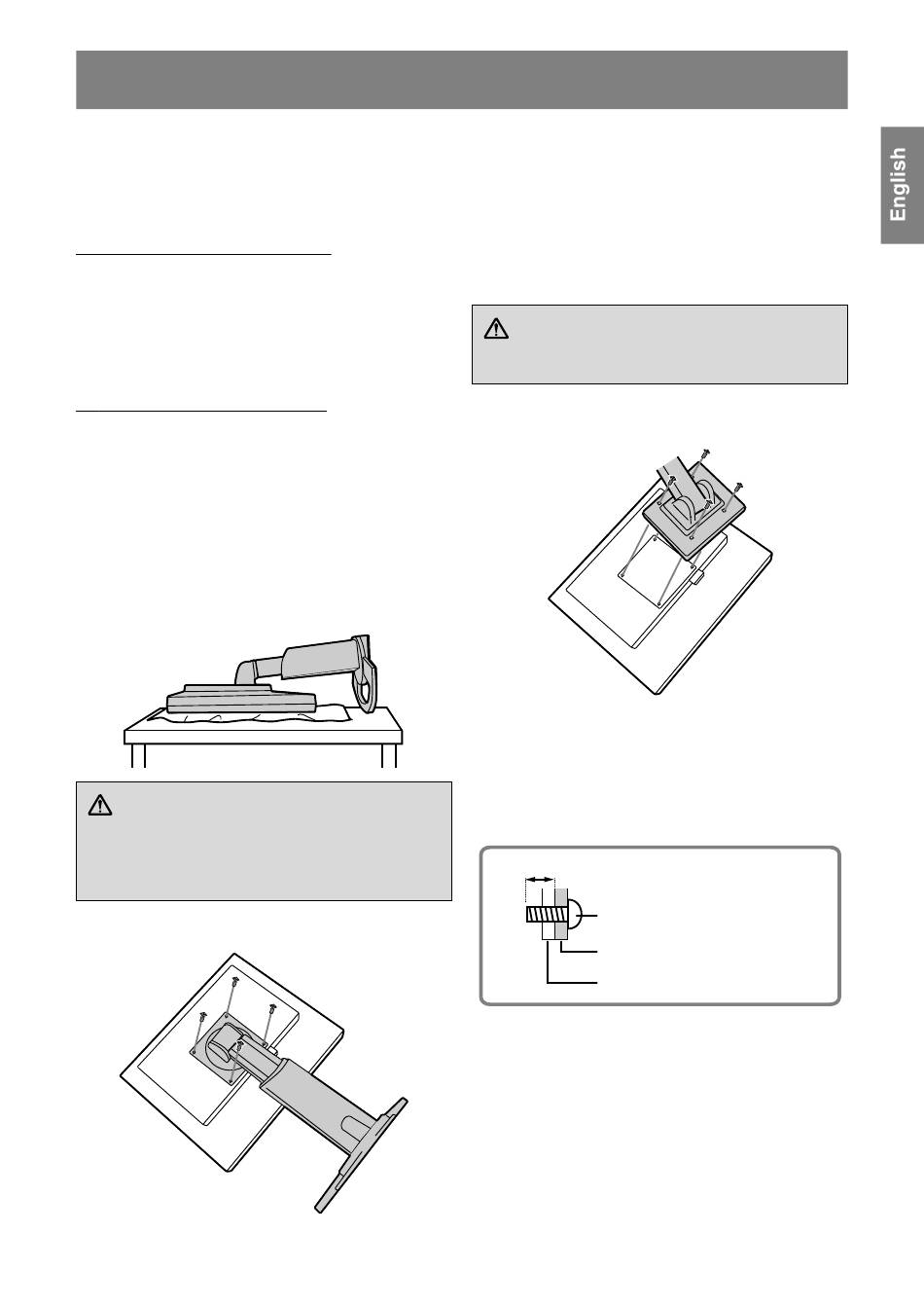

Instructions for attaching a VESA compliant arm

An arm or stand based on the VESA standard
(commercially available) can be attached to the
monitor.
Procurement of the arm or stand is at the custom-
er's discretion.
Arms or stands able to be used
Attachments must satisfy the following.
- Compatible with the VESA standard.
- Have a gap of 100 mm x 100 mm between the
screw holes on the section to be attached.
- Not be likely to fall off or break off after being
attached to the monitor.
How to attach the arm or stand
- Be careful not to overly bend the cable or add
extension cords as this could lead to malfunction.
- While following these instructions, please also
refer to the installation instructions in the
operation manual included with the arm or stand.
1. Remove the cable.
2. Spread out a soft cloth on a suitable horizontal
surface.
3. Being careful not to damage the monitor, gently
lay the monitor on it display-side down.
CAUTION!
Securely grasp both the display and
stand, and gently tip over. When the
monitor is inclined, the stand may sud-
denly pop out and cause injury.
4. Remove the four screws and then remove the
stand from the monitor.
Notes:
- The stand is specially made for use with this
monitor. Once having removed the stand, never
attempt to attach it to another device.
- Once having removed the screws, store them
together with the stand and if the stand is ever
re-attached be sure to use the original screws.
Using different screws could lead to a
malfunction.
CAUTION!
Do not disassemble the stand. Parts may
spring out and cause injury.
5. Attach the arm to the monitor with the four
screws.
Note:
- The screws used to attach the arm should be M4
screws with a length of 6 mm ~ 8 mm protruding
from the surface to be attached. Using different
screws could lead to malfunction or may lead to
the monitor falling off,internal damaged,personal
injury.
6 - 8mm
Screw used to attach arm
Arm
Part of monitor to which arm is
attached
