2.2 Connecting the base station

1
2

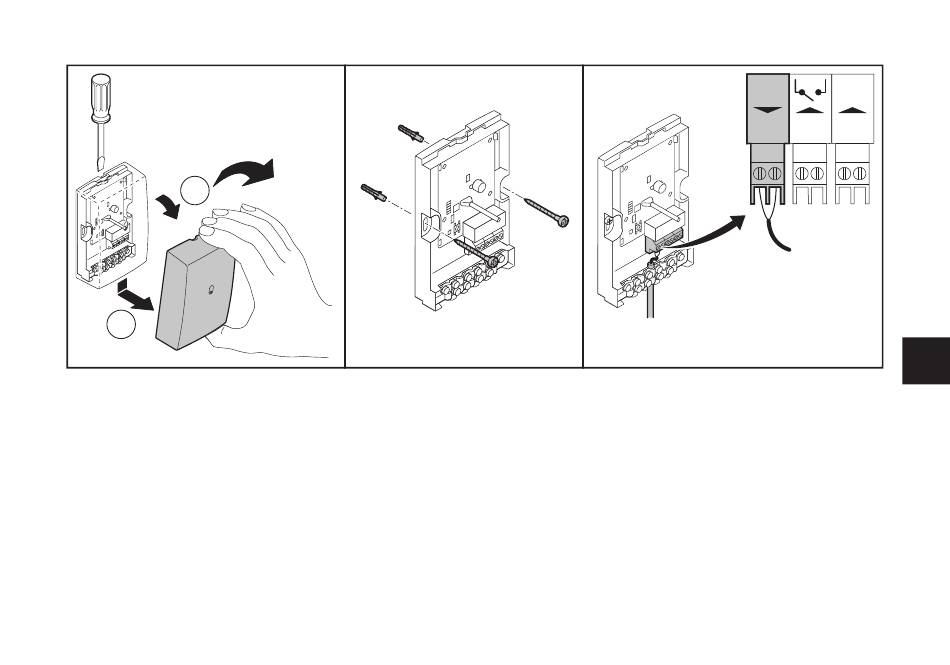

1. Open the housing by releasing the front of the housing from the base
plate using a screwdriver.
2. Attach the base plate of the base station to the wall using the supplied
screws and plugs. (Keep some space free above the base station to allow
for opening the housing again later).
3. Connect the OpenTherm connection of the boiler to the OpenTherm
connection of the base station (green, indicated by OTm). It makes no
5Vdc
OTm Digi 0 +
EN
R000253-A
20
