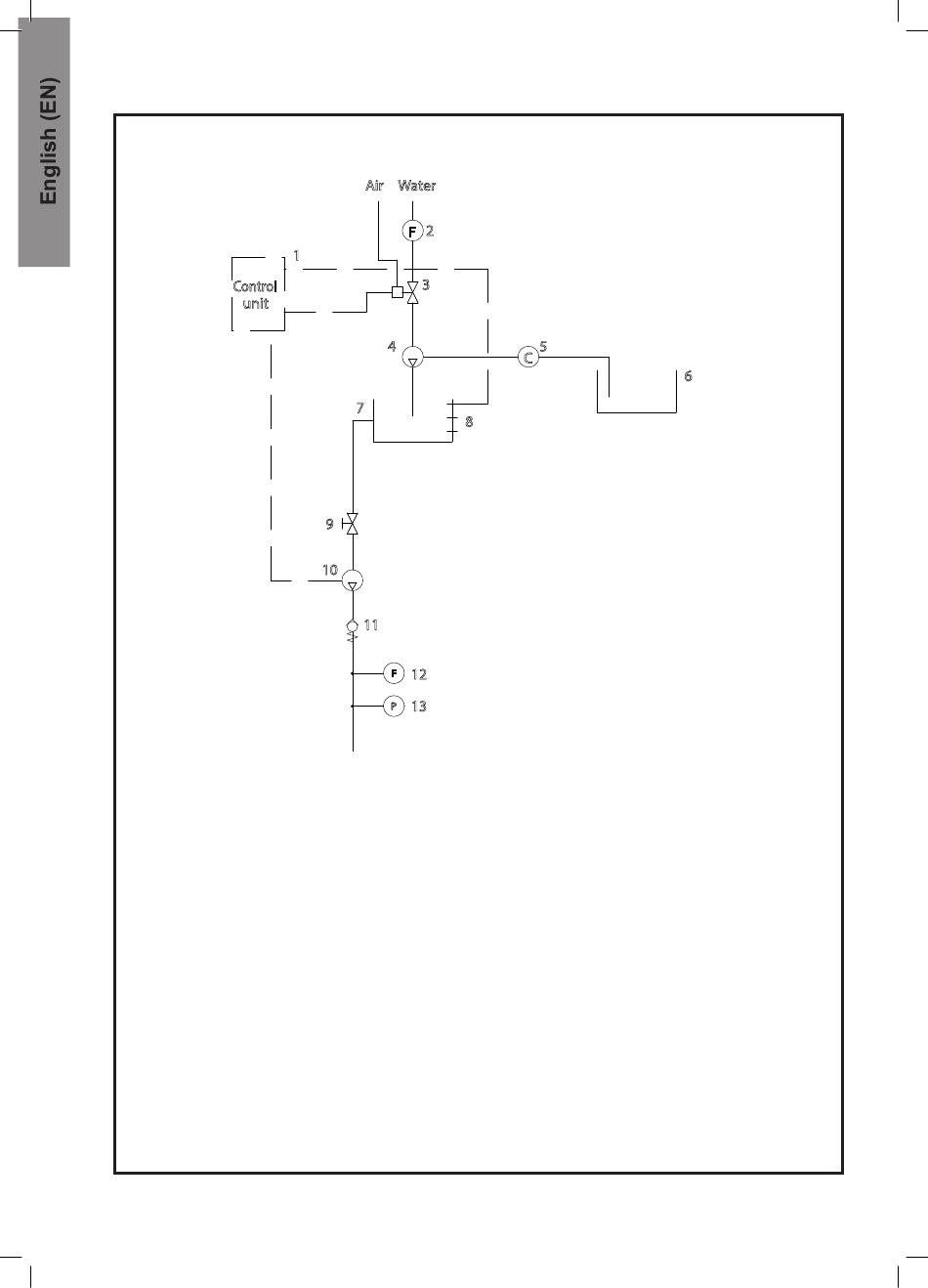

Flow Diagram Inspexx SD
1. Controller
2. Flow sensor
3. Ball valve w. actuator and solenoid
4. Dosing pump
5. Oval gear meter
6. Tank for detergent
7. Tank for pre-diluted detergent
8. Level sensors
9. Ball valve
10. Pump
11. Non return valve
12. Flow switch
13. Pressure sensitive switch
